Pro Air Tools

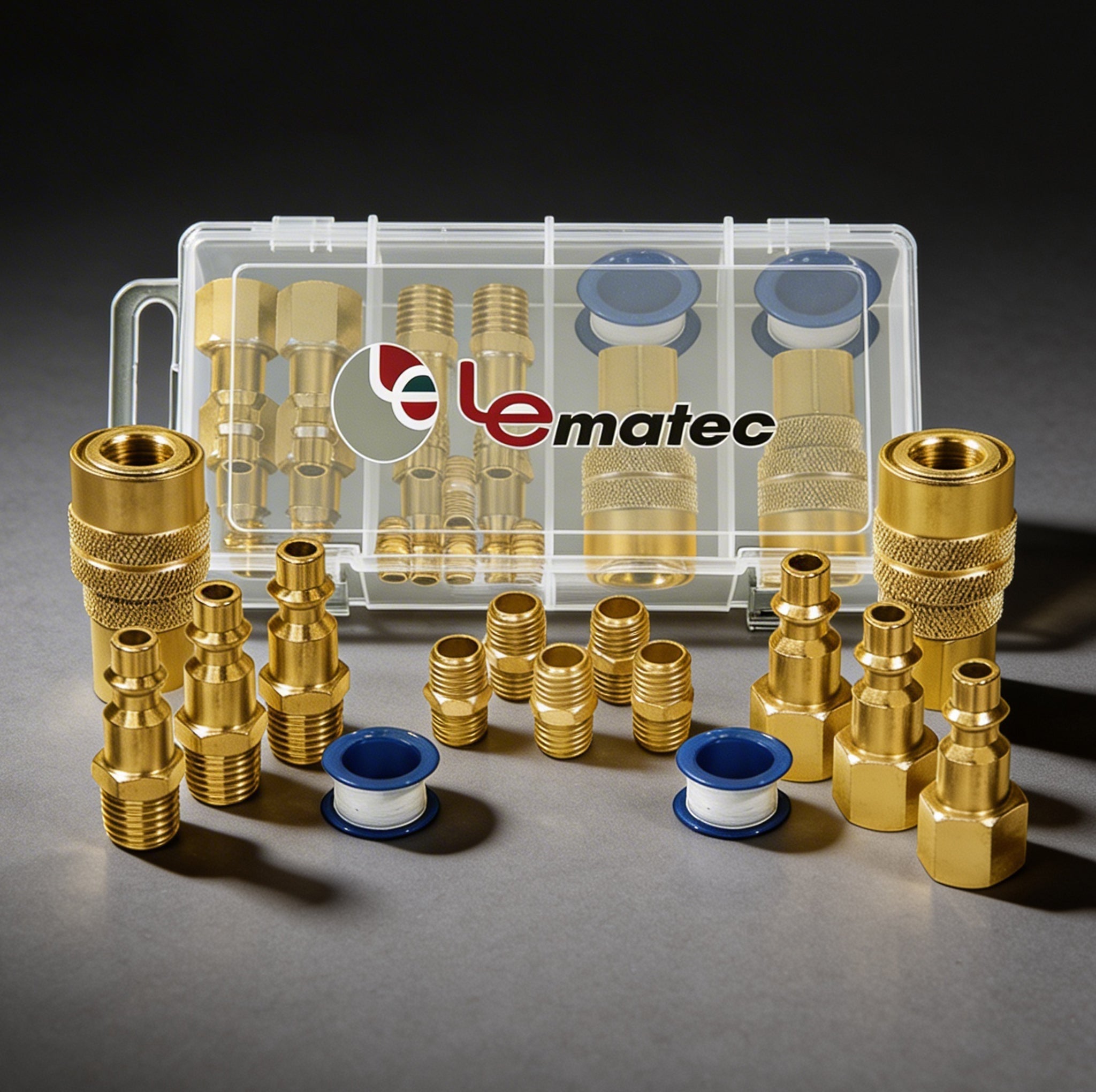

15-Piece Quick Connect Air Compressor Fitting Kit - Professional Grade Brass NPT Connections Set with Storage Case
15-Piece Quick Connect Air Compressor Fitting Kit - Professional Grade Brass NPT Connections Set with Storage Case
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
A complete 15-piece air-compressor fittings kit in a single storage case: solid-brass quick-connect couplers, male and female plugs, NPT adapters, and Teflon tape. Milton M-style (Type D/I/M) profile, the most common standard in North America, so it pairs with virtually every home and shop compressor on the market.
Compatible With
| Air compressors | All compressors with 1/4" NPT outlets (use a 3/8"-to-1/4" adapter if needed) |
| Air tools | All pneumatic tools with 1/4" NPT inlets — impact wrenches, ratchets, sanders, blow guns, nailers |
| Air hoses | Standard 1/4" ID air hoses with NPT threads |
| Quick-connect system | Milton M-style (Type D/I/M industrial profile) |

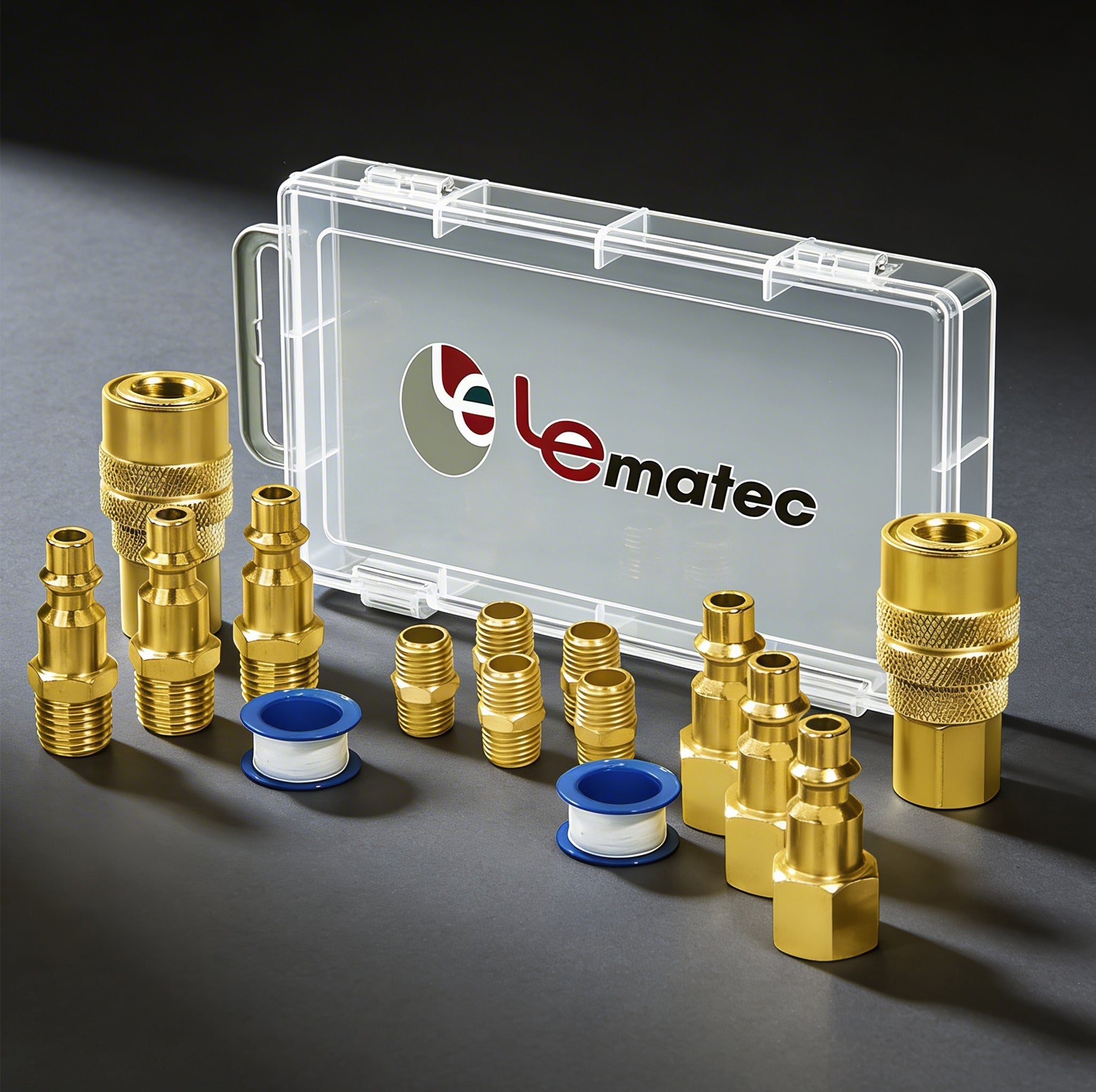

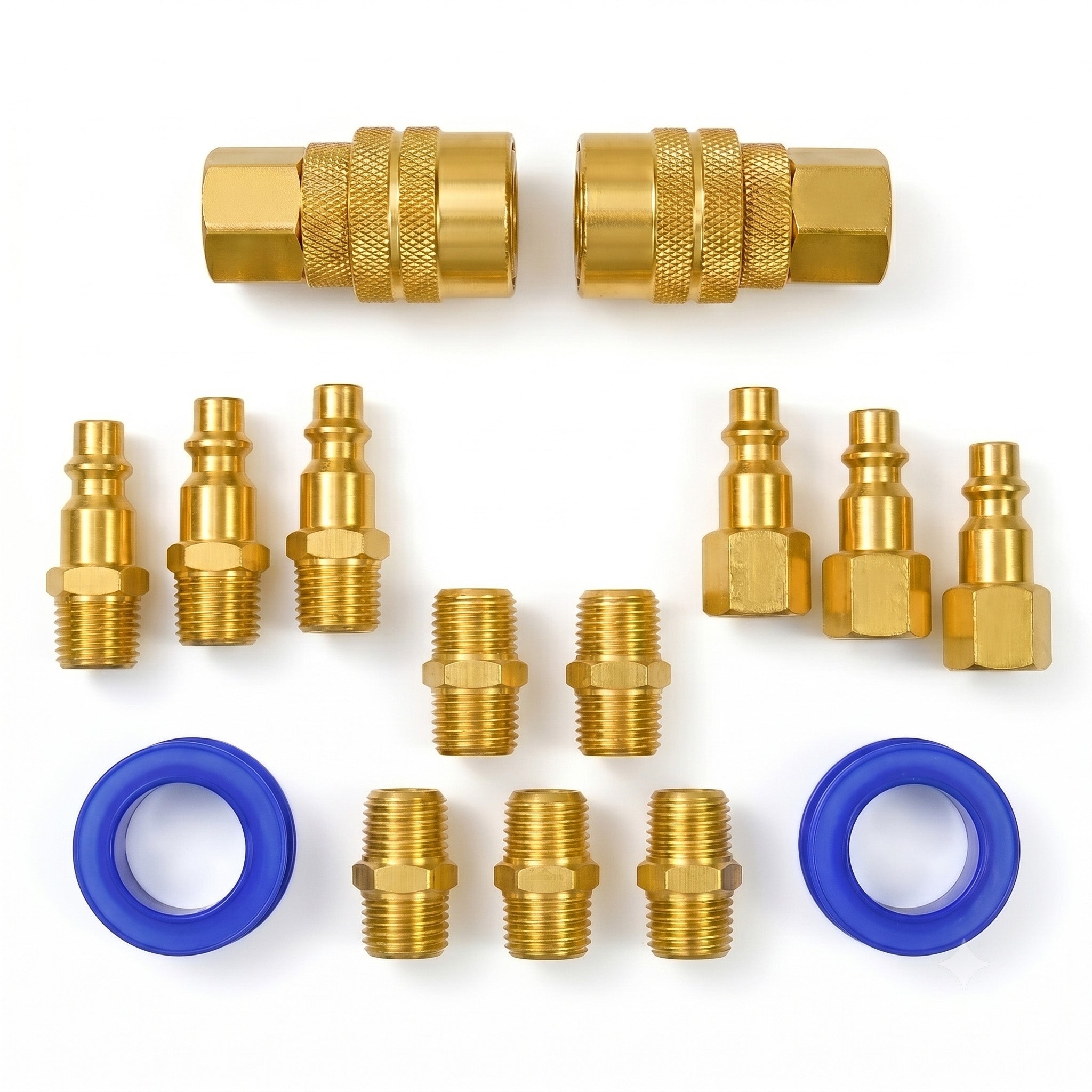

What’s in the Box
- 2 brass quick-connect couplers (female)
- 3 male plugs (1/4" NPT)
- 3 female plugs (1/4" NPT)
- 5 male-to-male NPT connectors
- 2 rolls of Teflon thread tape
- Organized storage case
- User manual
Key Features
- Complete 15-piece set: Every coupler, plug, and adapter needed to connect compressor, hose, and tools — no missing pieces, no follow-up trips to the hardware store.

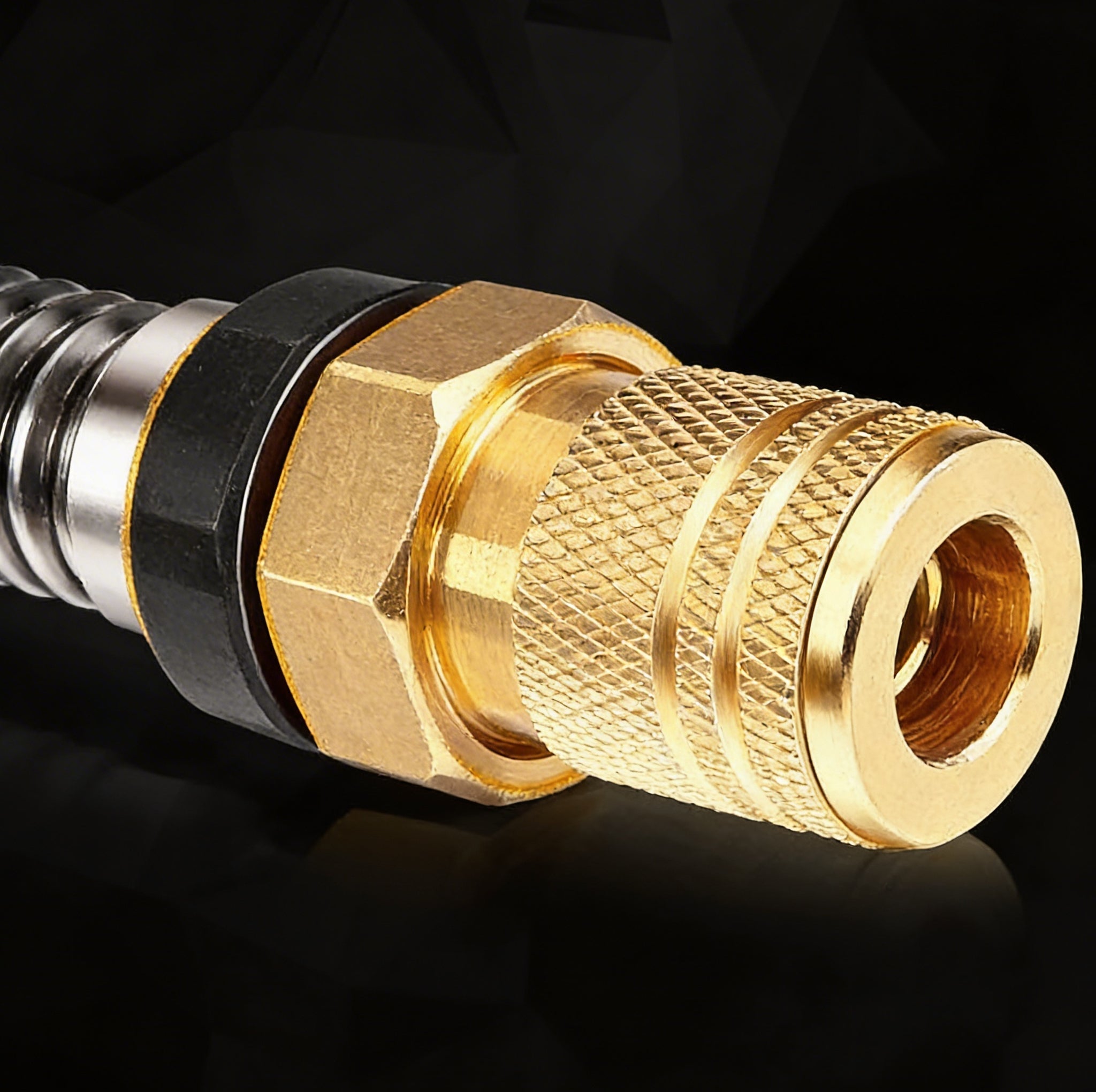

- Solid brass construction: Corrosion-resistant, handles repeated connect/disconnect cycles without wear, and seals tighter than plated-steel equivalents.
- Milton M-style (1/4" NPT): The most common industrial profile in North America — fits virtually all major brands including Milton, Foster, ARO, Campbell Hausfeld, and DeWalt.
- Quick-connect convenience: Snap-in connections for instant tool changes — no wrenches, no fumbling with threaded fittings during a busy shop day.
- Teflon tape included: Two rolls cover the threaded NPT joints with the right sealing layer count from the start.
- Storage case: Keeps every piece sorted and portable — drop it in the truck or under the bench.
Technical Specifications
| Material | Solid brass (fittings) + steel (spring/internal components) |
| Connection size | 1/4" NPT |
| Quick-connect style | Milton M-style (Type D/I/M industrial) |
| Pieces | 15 (couplers, plugs, connectors, tape) |
| Storage | Organized hard case included |
Common Questions
Will these fittings work with my compressor?
If your compressor has 1/4" NPT outlets, yes — that covers the vast majority of home and pro shop compressors. If your compressor uses 3/8" NPT, you will need a 3/8"-to-1/4" reducer (not included). Check the existing fitting on your compressor; if it’s a 1/4" brass fitting like the ones in this set, you are good to go.
What’s the difference between a coupler and a plug?
A coupler is the female quick-connect that stays on your air line and accepts a plug. A plug is the male quick-connect that screws into your air tool. Pushing the plug into the coupler creates an instant, sealed air connection. This kit includes both ends so you can build your full system.
Do I need Teflon tape on quick-connect fittings?
Use Teflon tape on the threaded NPT joints where fittings screw into your compressor, tools, or hose. Wrap 2–3 layers clockwise on the male threads before tightening. Do NOT use tape on the quick-connect coupling surfaces themselves — those seal mechanically with an internal O-ring.
What’s the difference between industrial and automotive quick-connect styles?
Industrial (Milton M-style) and automotive (Milton I/M or T-style) quick-connects have different coupling profiles and are NOT interchangeable. This kit uses the industrial M-style profile, which is the dominant standard in North American shops. If your existing fittings are automotive, replace them with this kit to standardize.
Will brass fittings hold up to daily shop use?

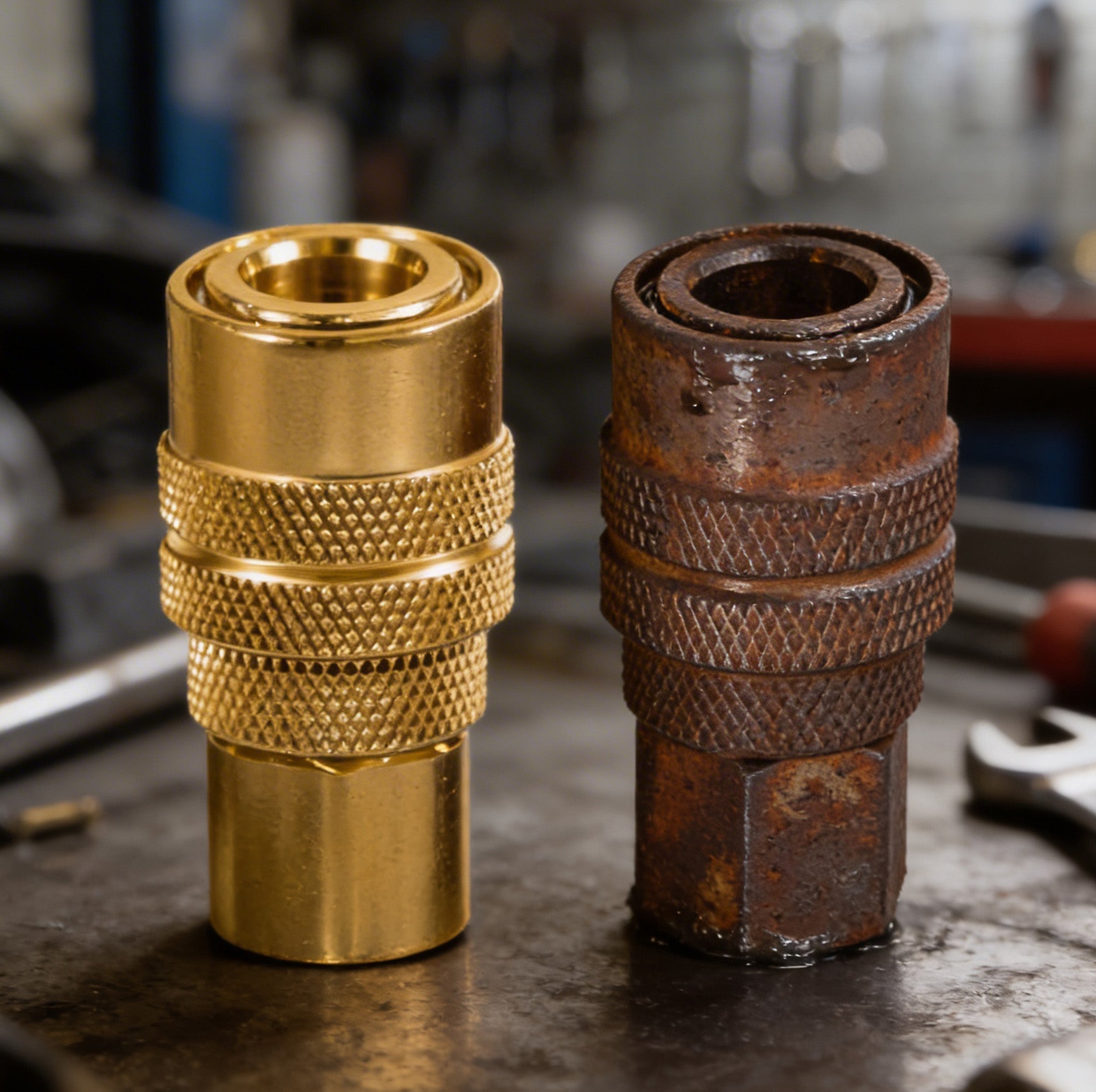

Yes — brass is the preferred material for high-cycle pneumatic fittings. It resists corrosion, will not gall on repeated connect/disconnect cycles, and outlasts zinc-plated steel by years in humid or oily shop environments.
How do I set up a multi-tool air system with this kit?

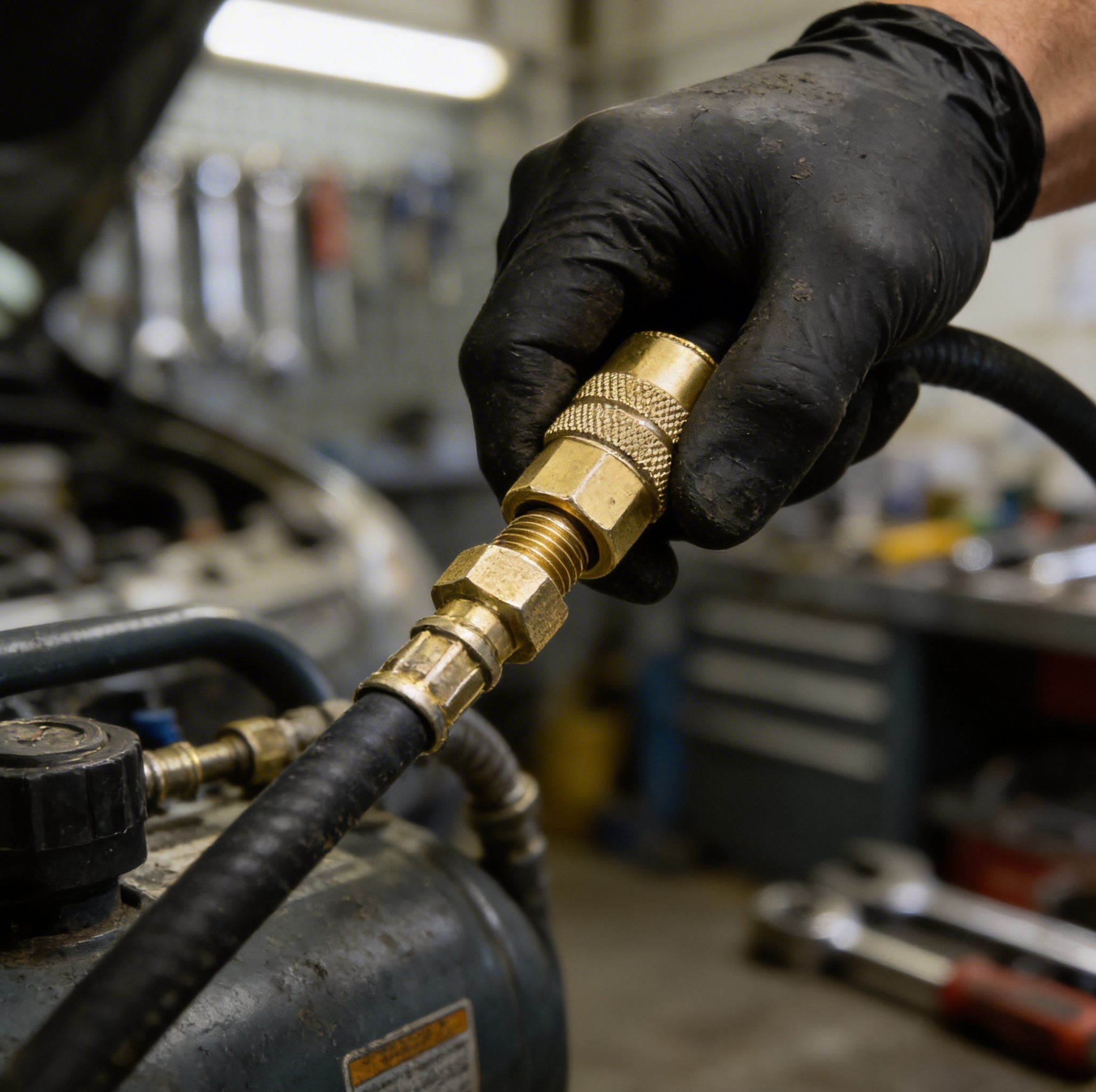

Install a coupler on the compressor’s outlet, run your hose to a manifold or wye fitting near the bench, and put a coupler at each drop point. Screw a plug into each tool. Now you can swap tools in seconds without disconnecting the main line. The kit gives you enough pieces to set up a typical 2–3 tool shop.
