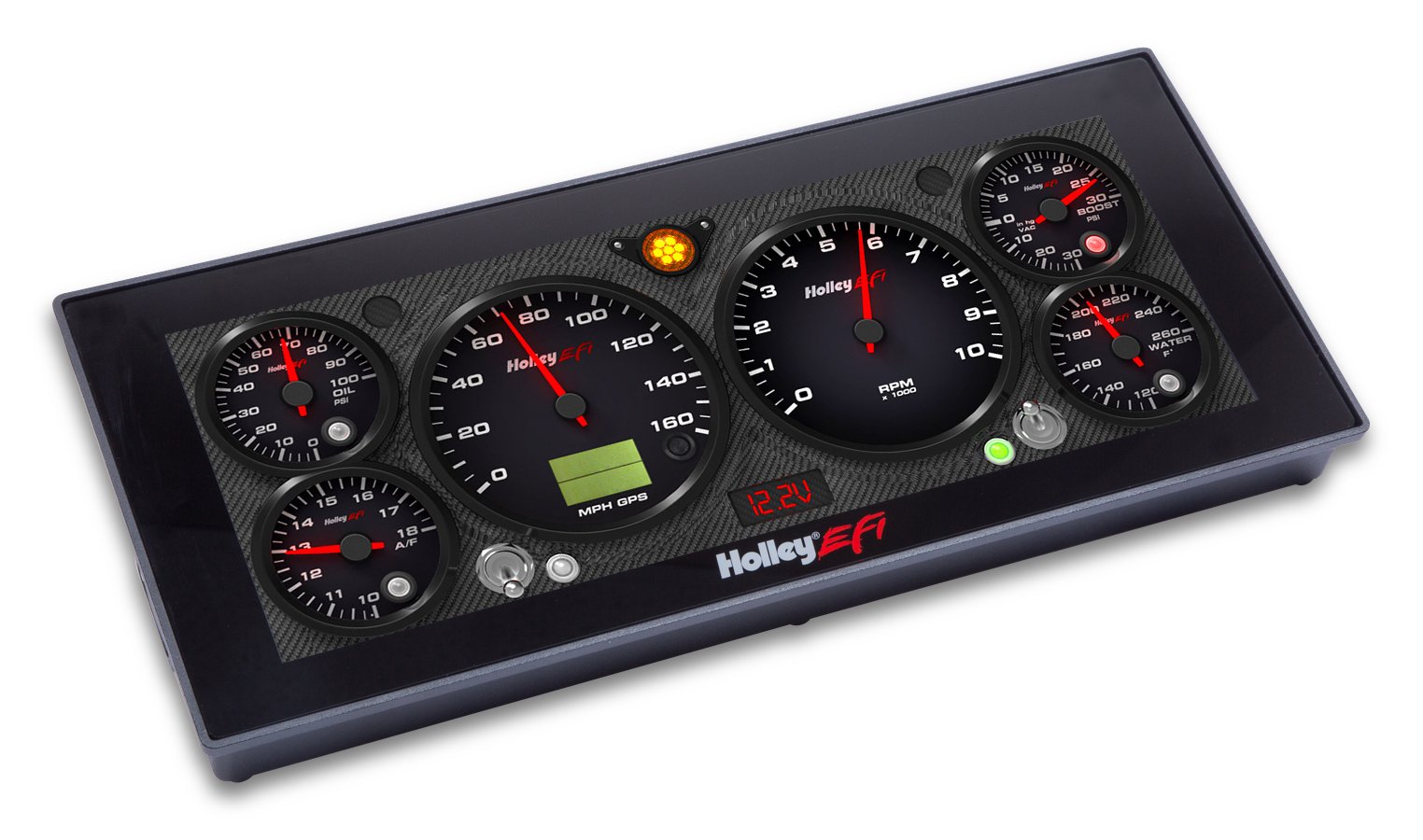

Holley EFI 12.3" Pro Dash
Holley EFI 12.3" Pro Dash
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
7" Digital Dash, Compact Fully Customizable!
Overview
Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package! Holley's standalone digital dash has great features such as; a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster.
Features:
- Plug-and-play Display support for Dominator, HP, Terminator X Sniper EFI (Not compatible with Sniper 2)
- Real-time ECU tuning, allows you to make quick tune changes, without needing to hook up a laptop!
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
- 16 default background skins pre-loaded with unlimited options for importing custom layouts
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- Manual or auto-brightness features for easy viewing day or night
- Built-in GPS with odometer function (Antenna included)
- On-screen datalog playback features allows you to review vital run information
- Expandable storage via USB
- No stylus required, capacitive touch, just like your smart phone.
- User definable channel alarms and warnings
- 6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included!

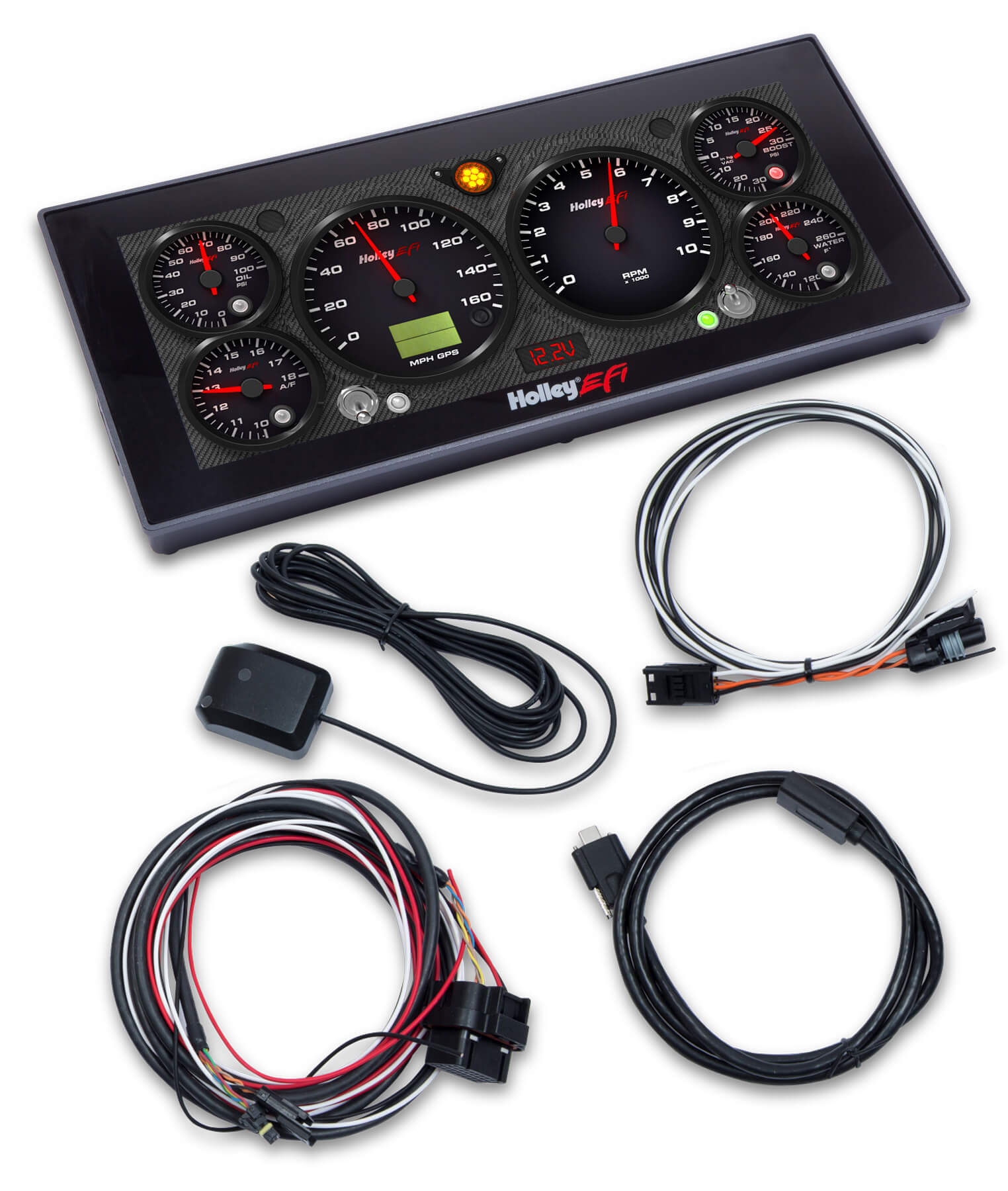

- Includes everything needed for installation!
- USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

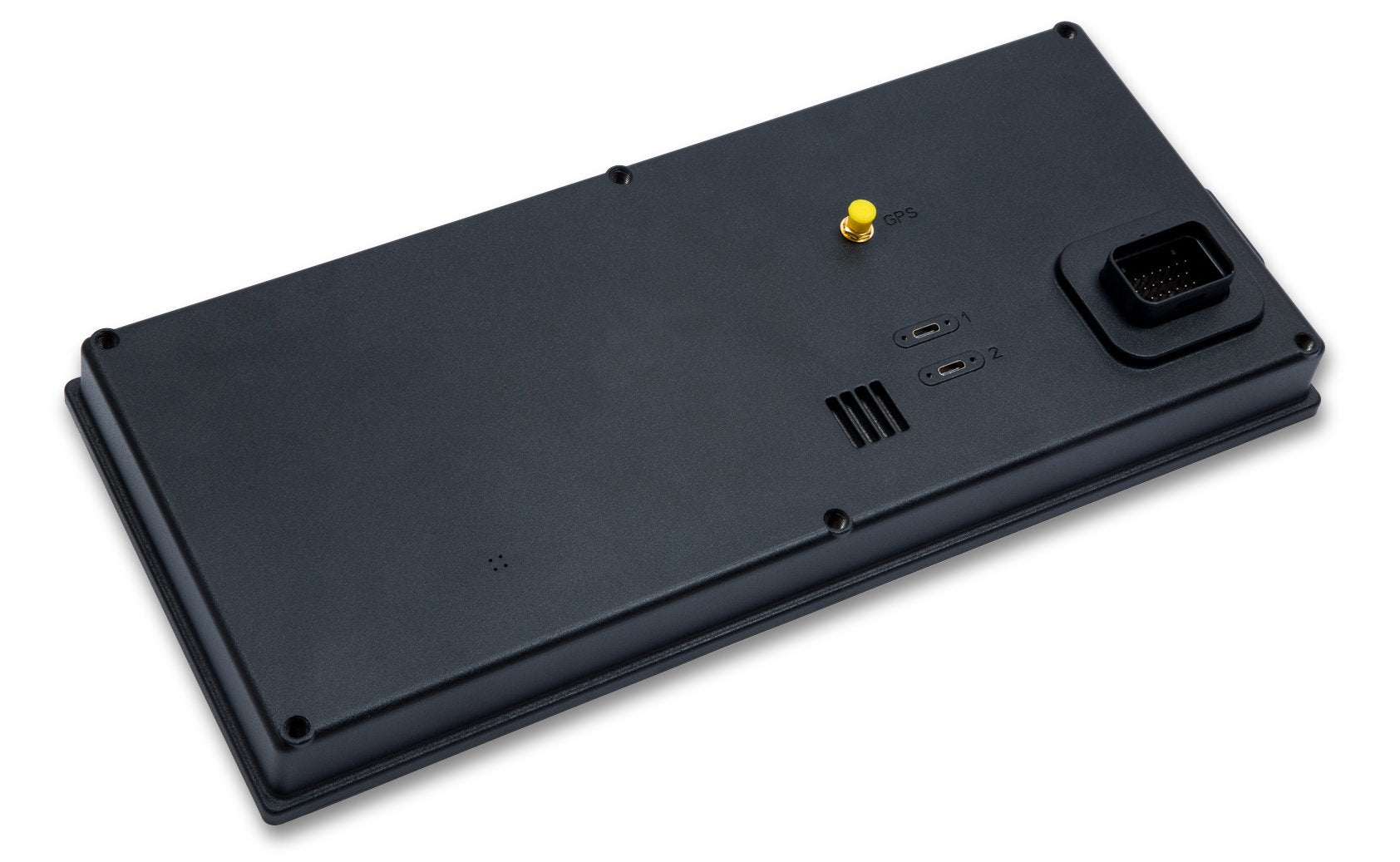

- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
- Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
- User defined alarms for any input
- Upgradable with future software enhancements
- Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall
- Dash weight - 3.29lbs
- Compatible with our Plug and Play Programmable Shift Light - Part Number 553-107
Details:
- Depth: 1.25"
- Screen Size: 12.3" Viewing Area
- Screen Type: Capacitive Touch Screen
