Holley Standalone Digital Dash Kit
Holley Standalone Digital Dash Kit
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Wide range of tuning and data-monitoring options in a compact 3.5" LCD display
Overview

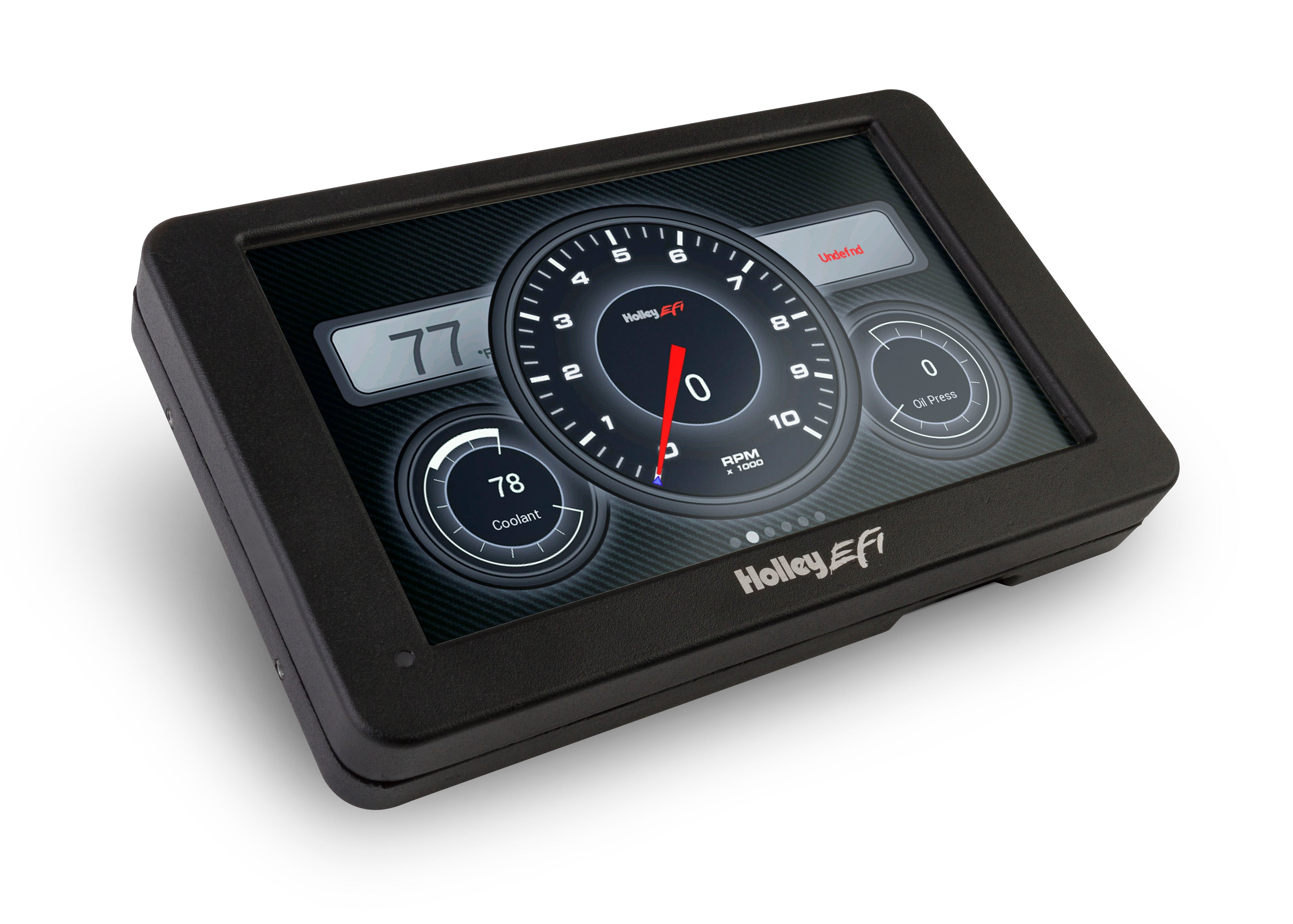

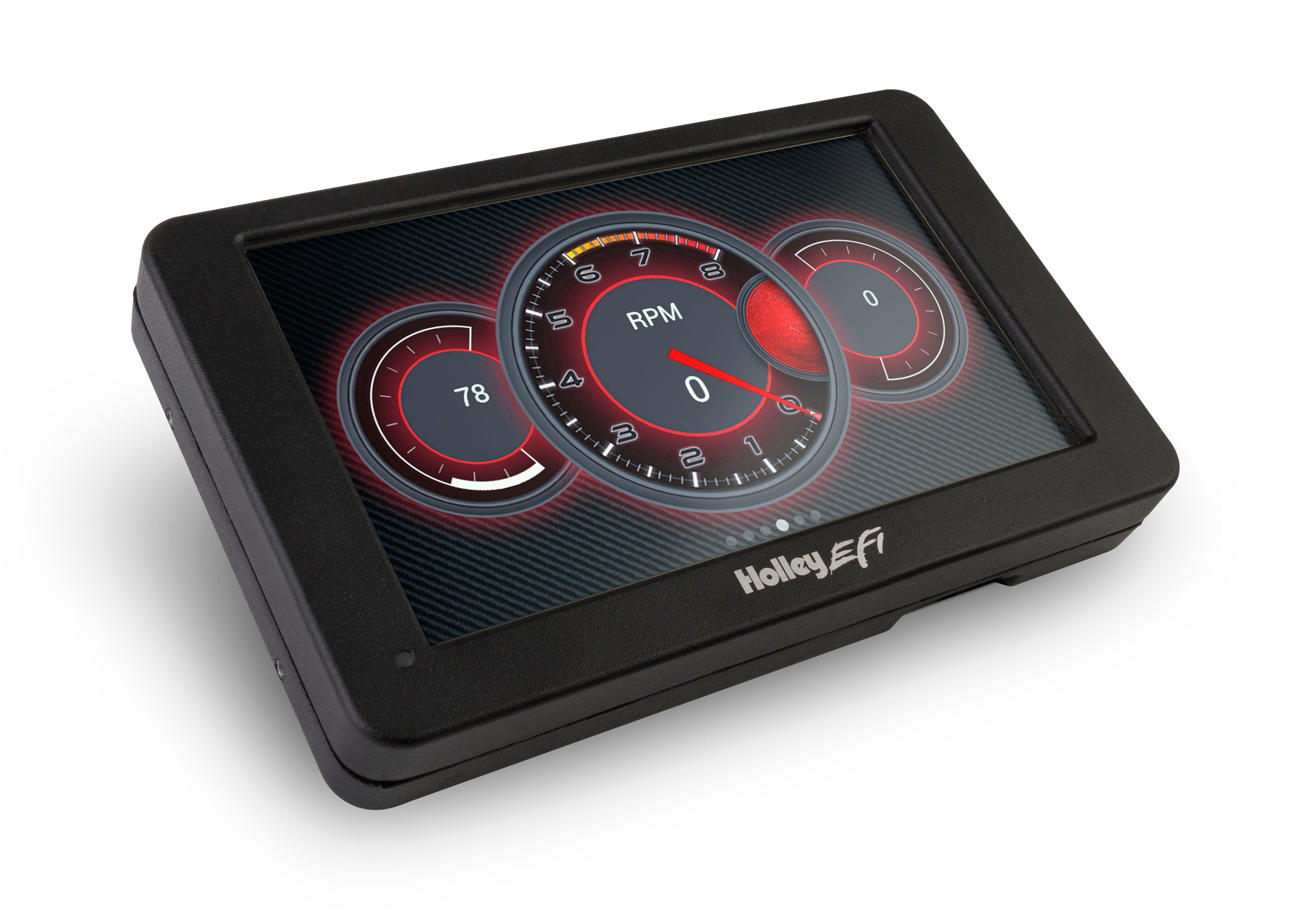

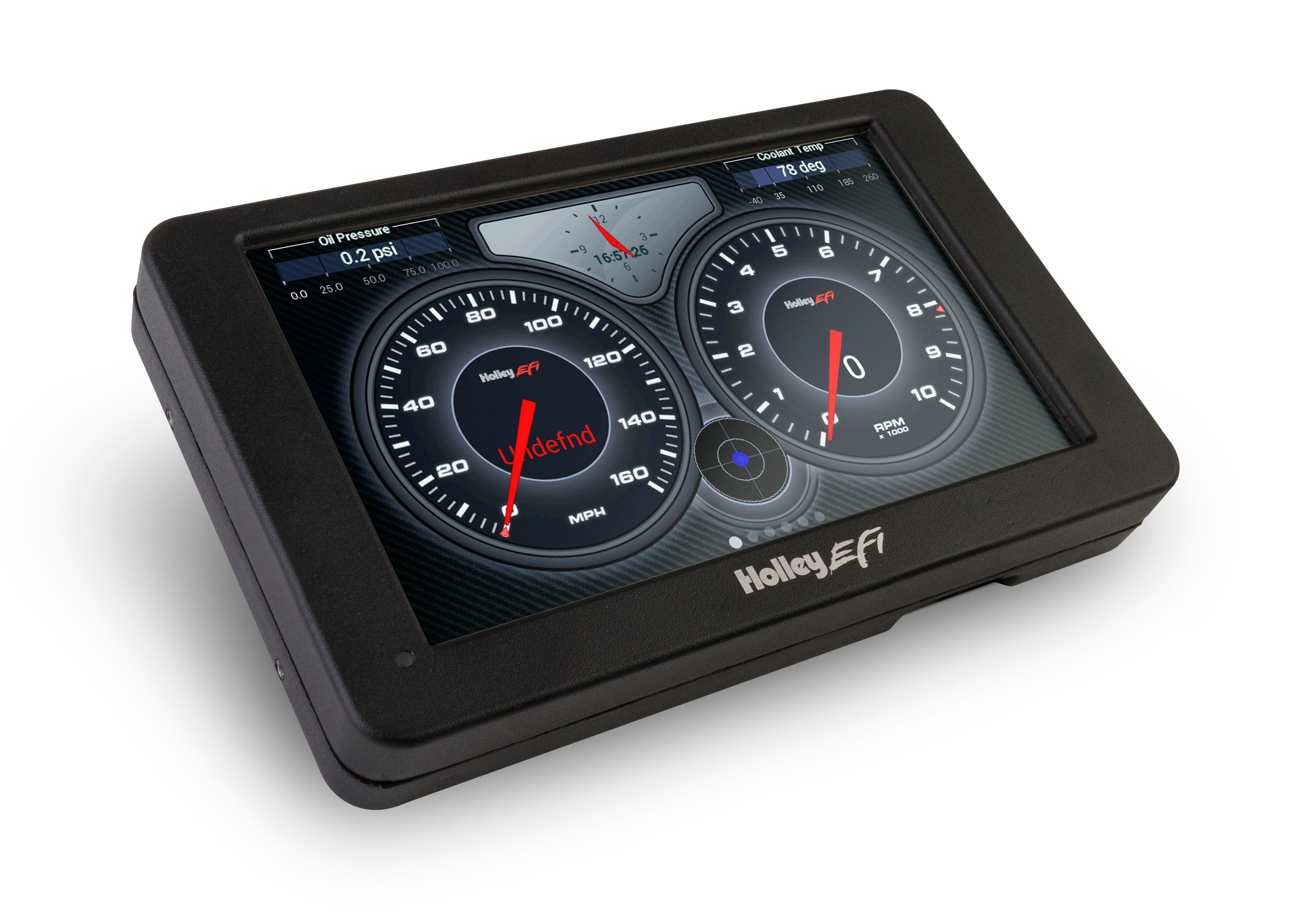

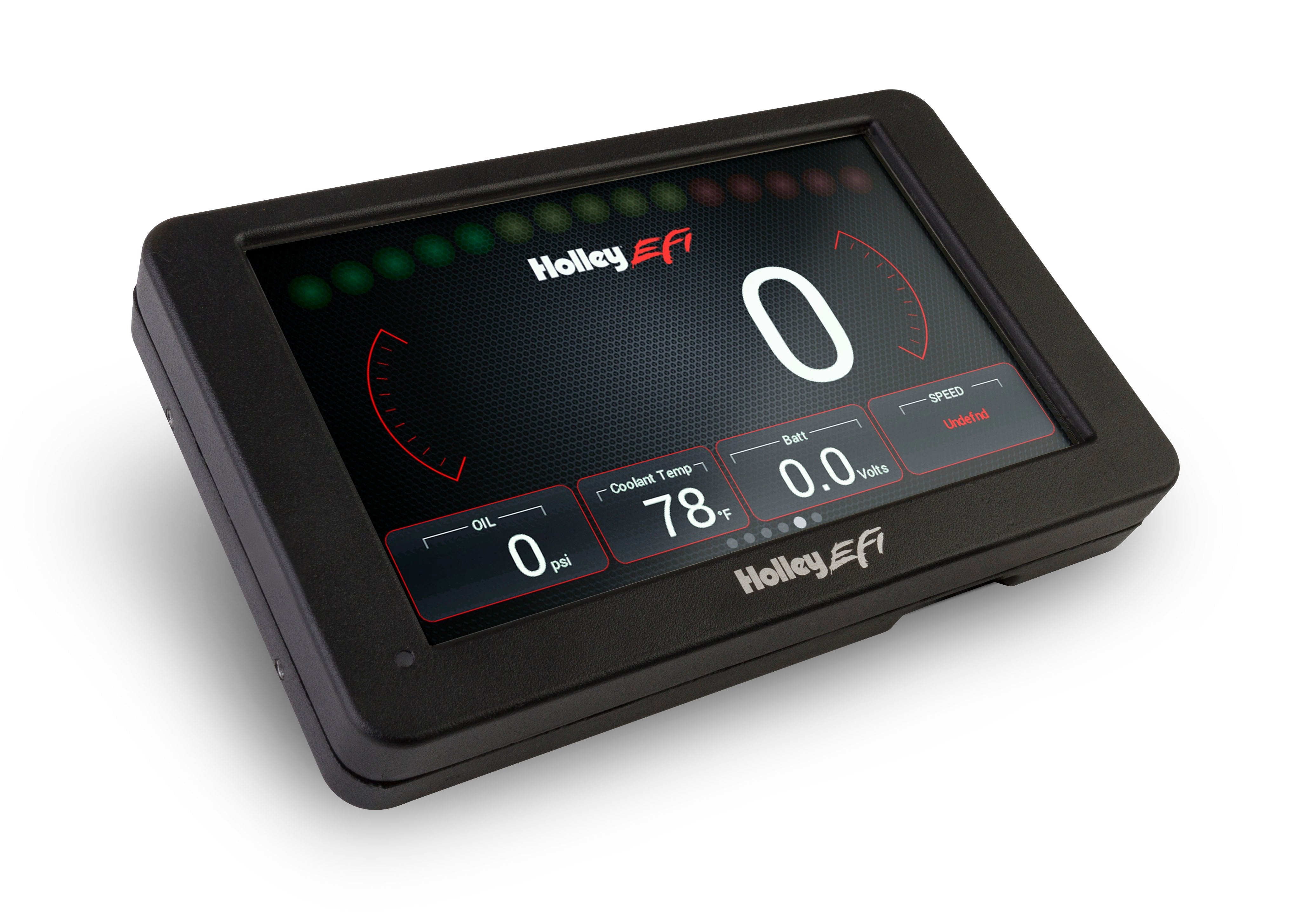

The touch screen LCD provides a dynamic range of tuning and data monitoring options in a compact 3.5" LCD display
Only compatible with Holley EFI systems.
Software and firmware updates can be downloaded here for free.
Features:
- Compact, customizable dash for use in a variety of applications
- 7??? low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
- 800x480 resolution with auto brightness and dimming
- Operating voltage min 8V - 20V
- Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
- Weather resistant aluminum housing with flexible mounting options
- Completely customizable layouts, with multiple default configurations to get you running in no time!
- Multiple gauge indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
- Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
- Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
- A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
- Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
- User definable warnings for any input
- Configurable progressive shift lights and light bar
- Expandable internal storage on micro SD card
- Free Software and Firmware upgrades, providing a future proof display solution

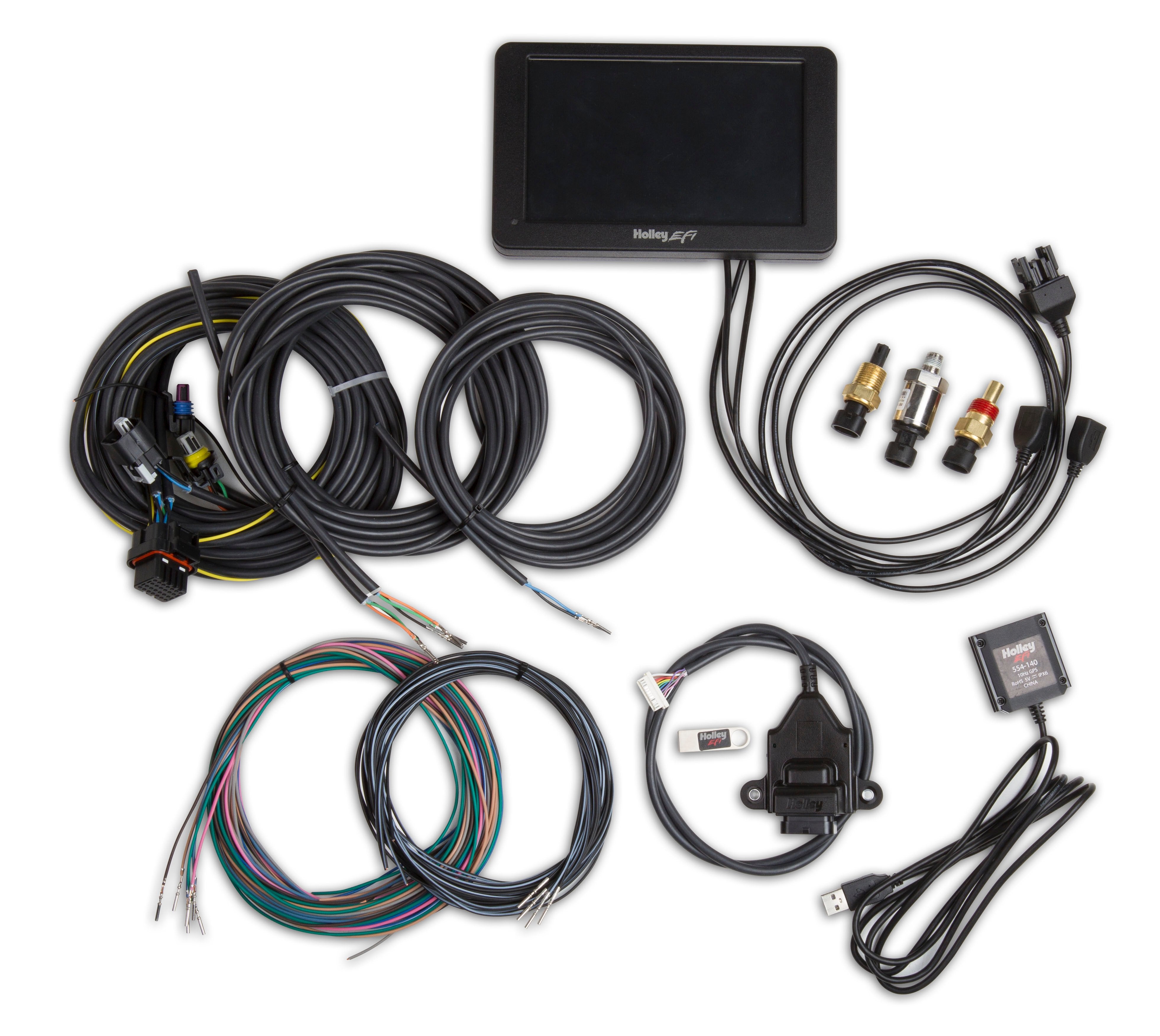

- Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS
Details:
- Depth: 1"
- Screen Size: 7" Diagonal
- Screen Type: Resistive touch screen
Links
Instruction Sheet
Additional Instructions
Description
Description
Wide range of tuning and data-monitoring options in a compact 3.5" LCD display
Overview
The touch screen LCD provides a dynamic range of tuning and data monitoring options in a compact 3.5" LCD display
Only compatible with Holley EFI systems.
Software and firmware updates can be downloaded here for free.
Features:
- Compact, customizable dash for use in a variety of applications
- 7??? low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
- 800x480 resolution with auto brightness and dimming
- Operating voltage min 8V - 20V
- Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
- Weather resistant aluminum housing with flexible mounting options
- Completely customizable layouts, with multiple default configurations to get you running in no time!
- Multiple gauge indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
- Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
- Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
- A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
- Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
- User definable warnings for any input
- Configurable progressive shift lights and light bar
- Expandable internal storage on micro SD card
- Free Software and Firmware upgrades, providing a future proof display solution
- Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS
Details:
- Depth: 1"
- Screen Size: 7" Diagonal
- Screen Type: Resistive touch screen
Links
Instruction Sheet
Additional Instructions
