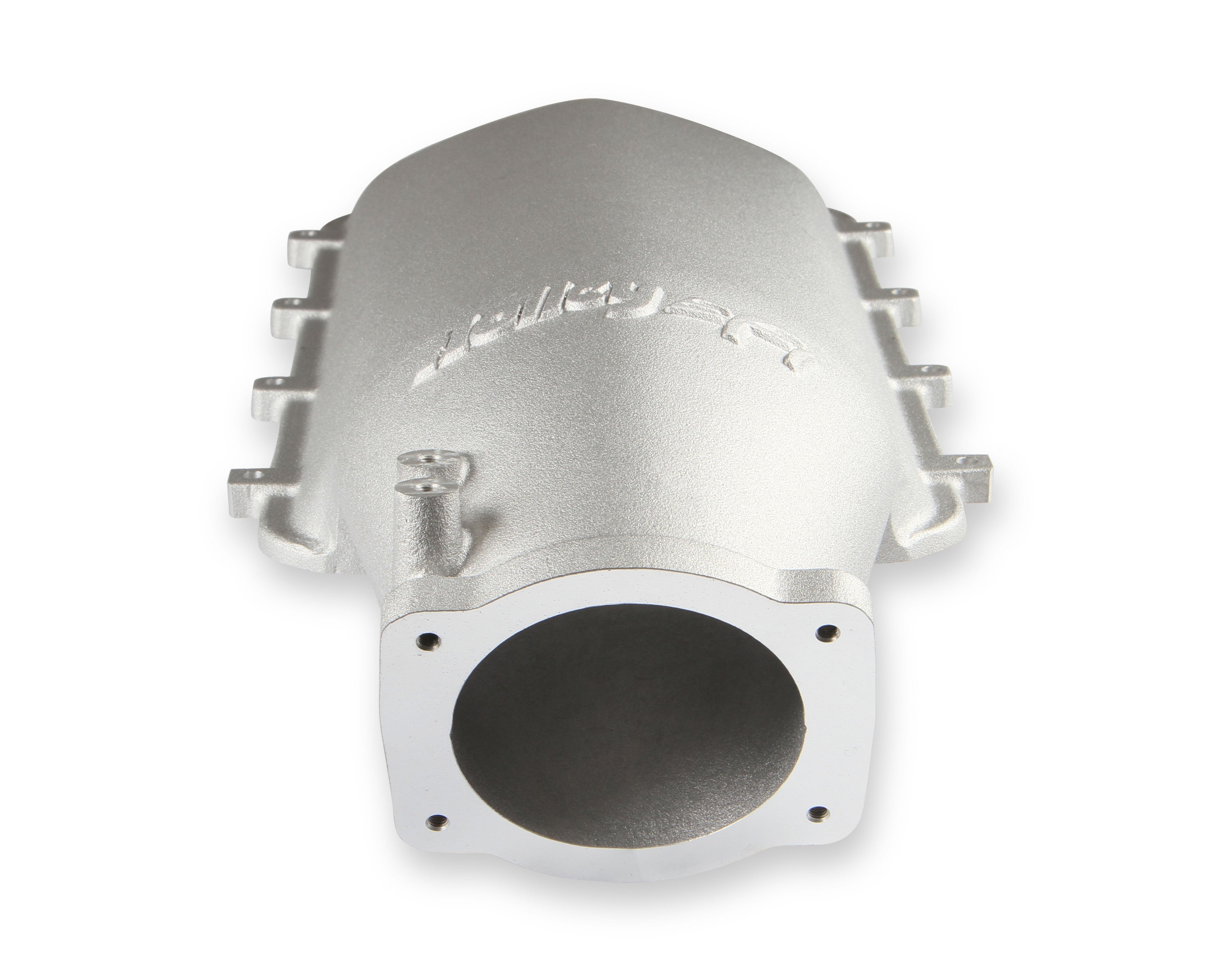

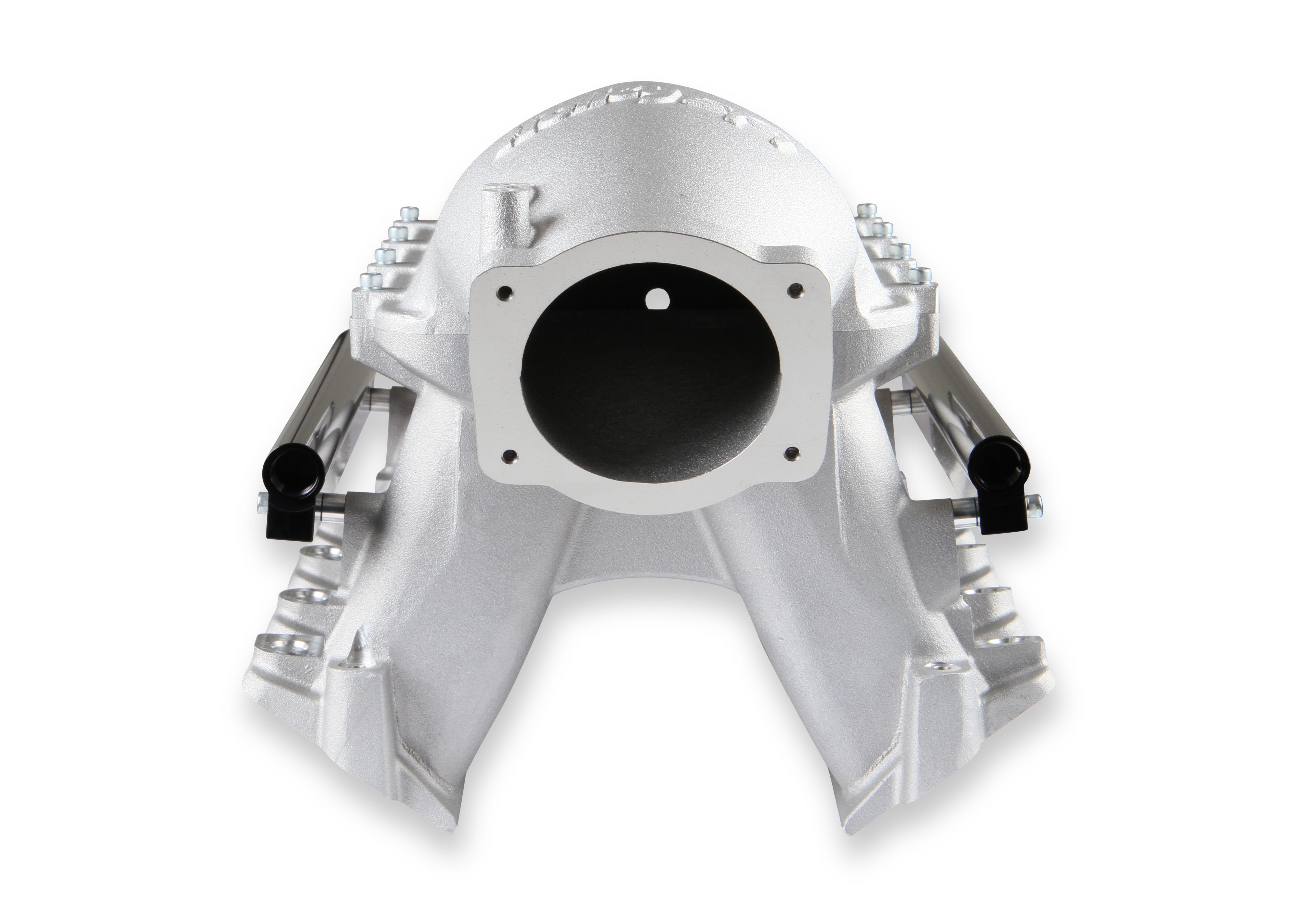

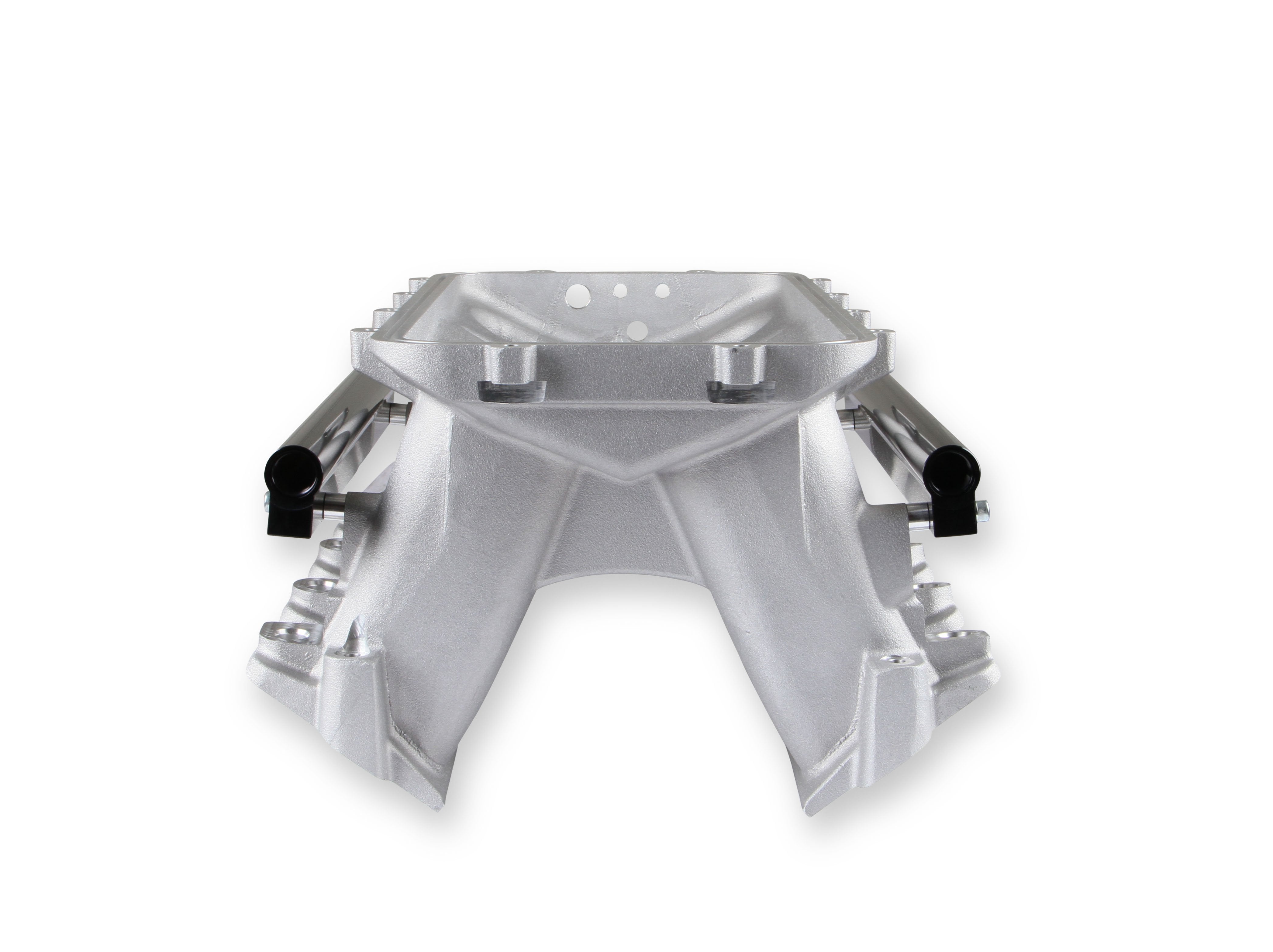

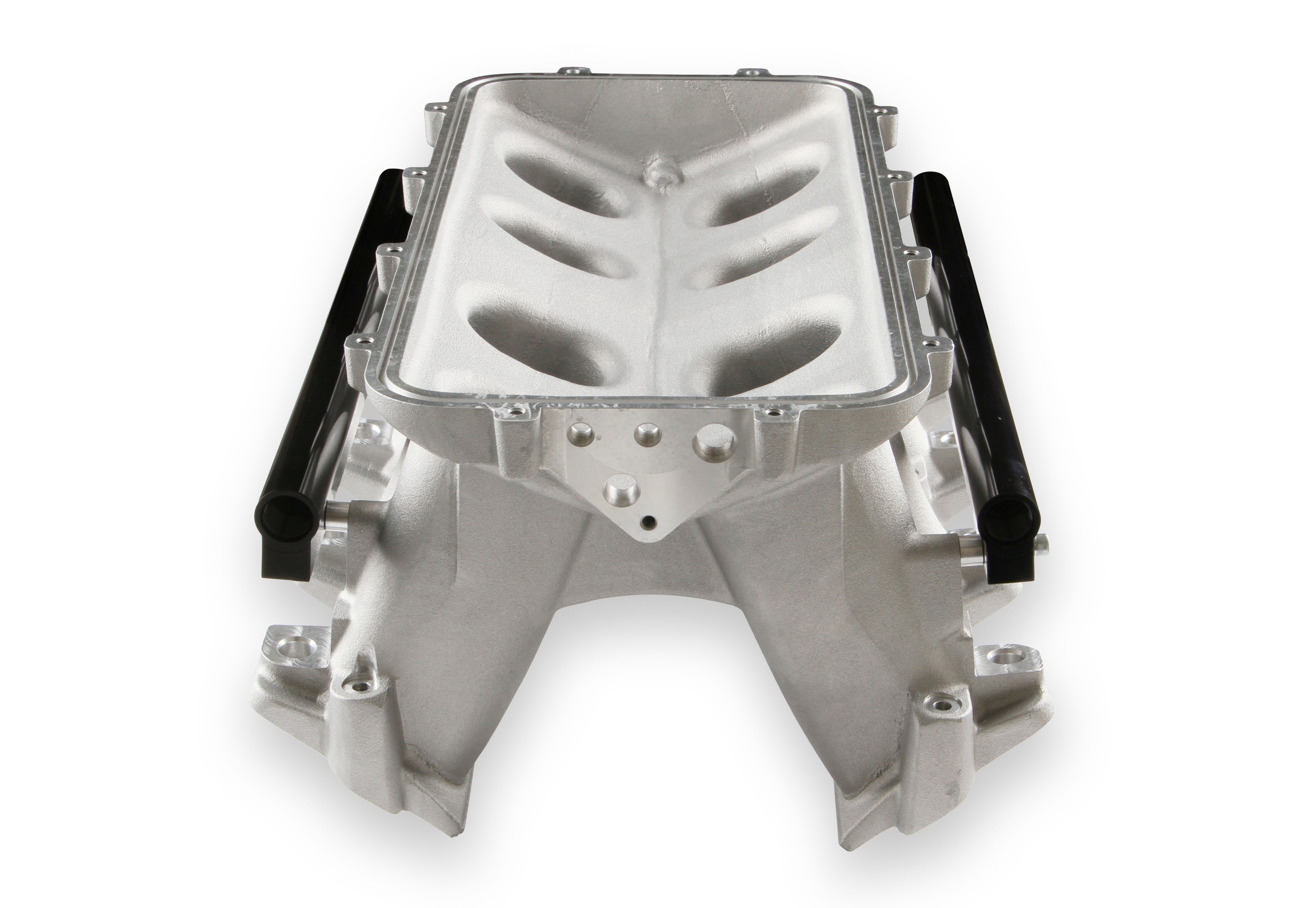

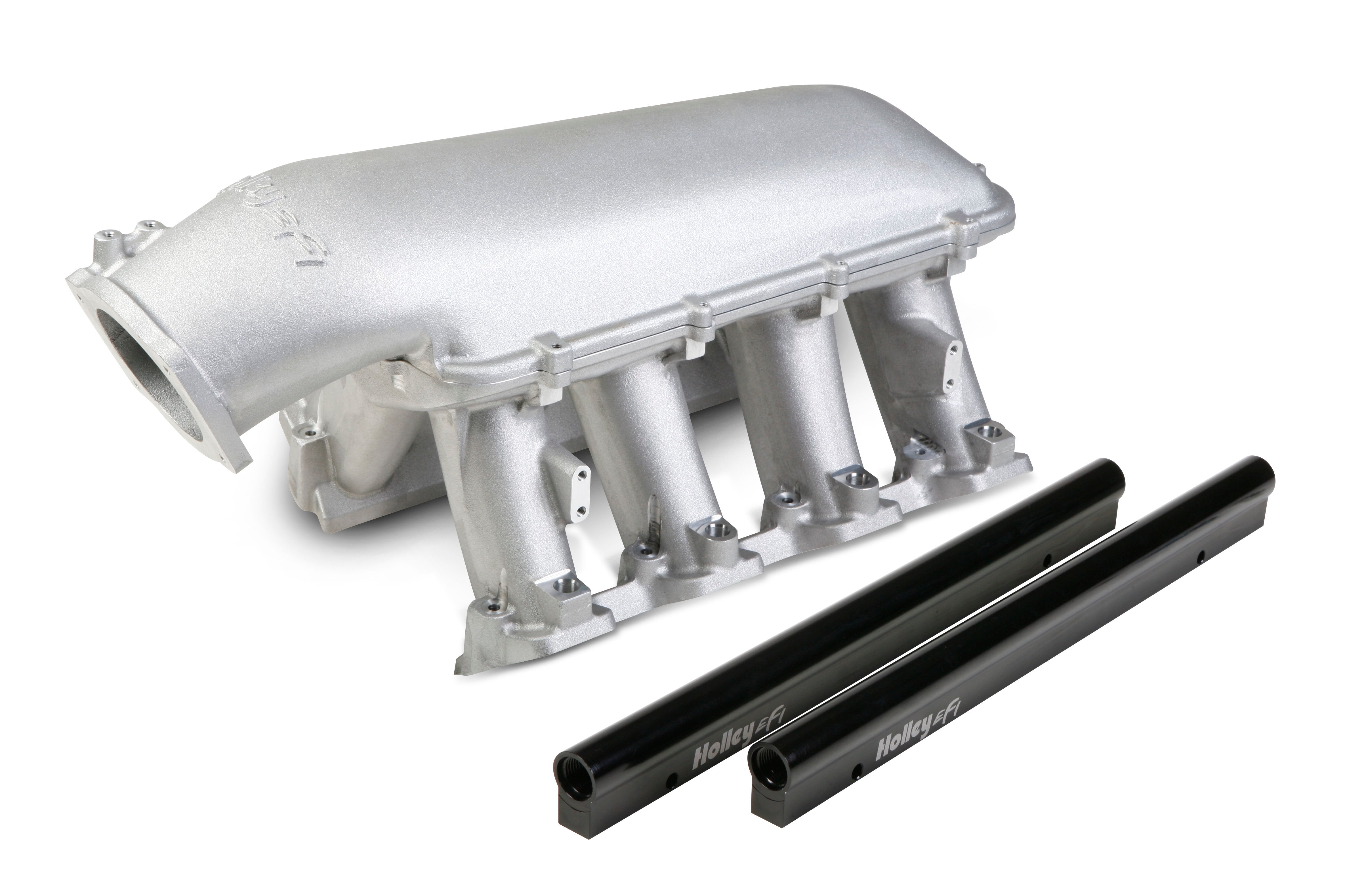

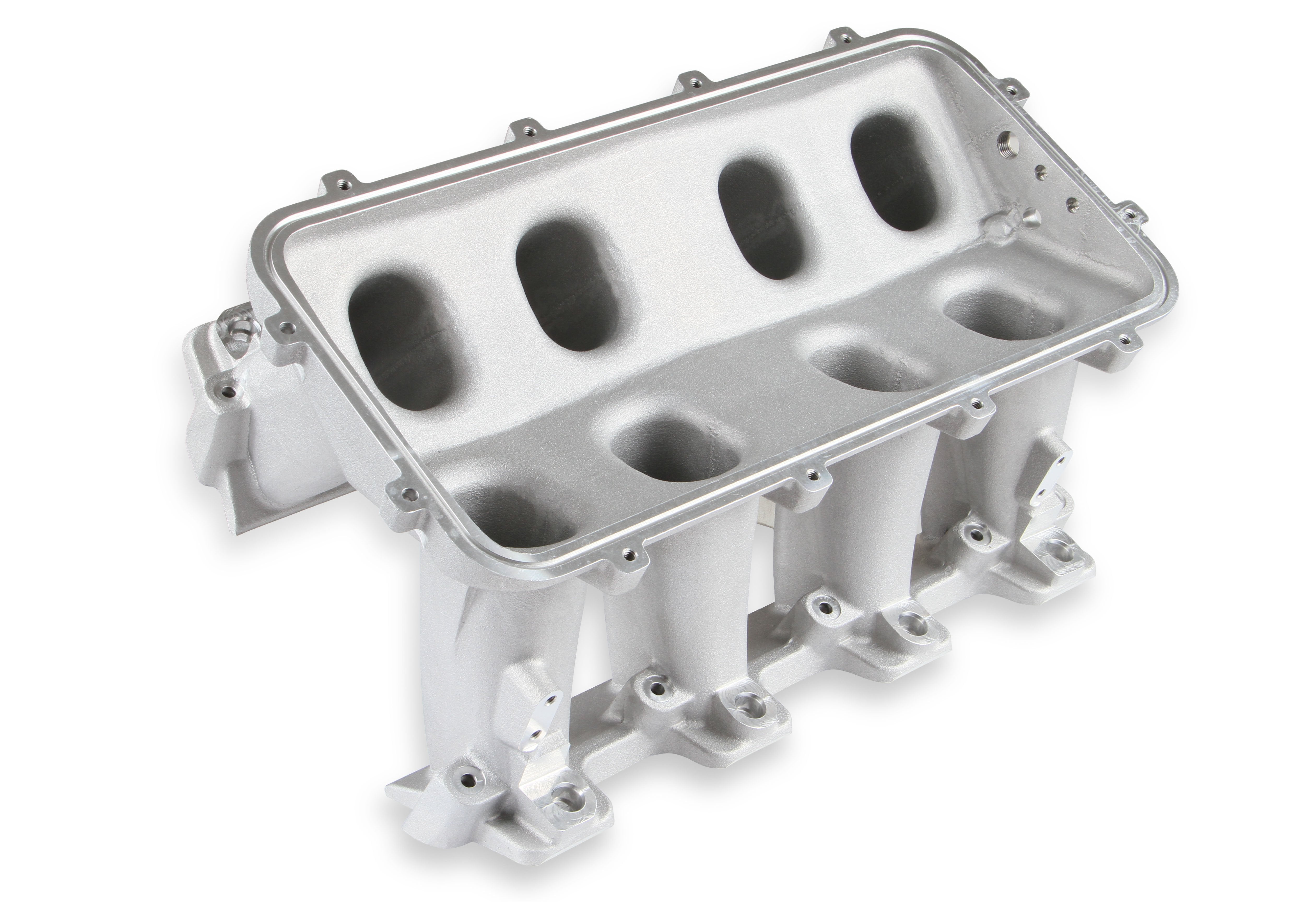

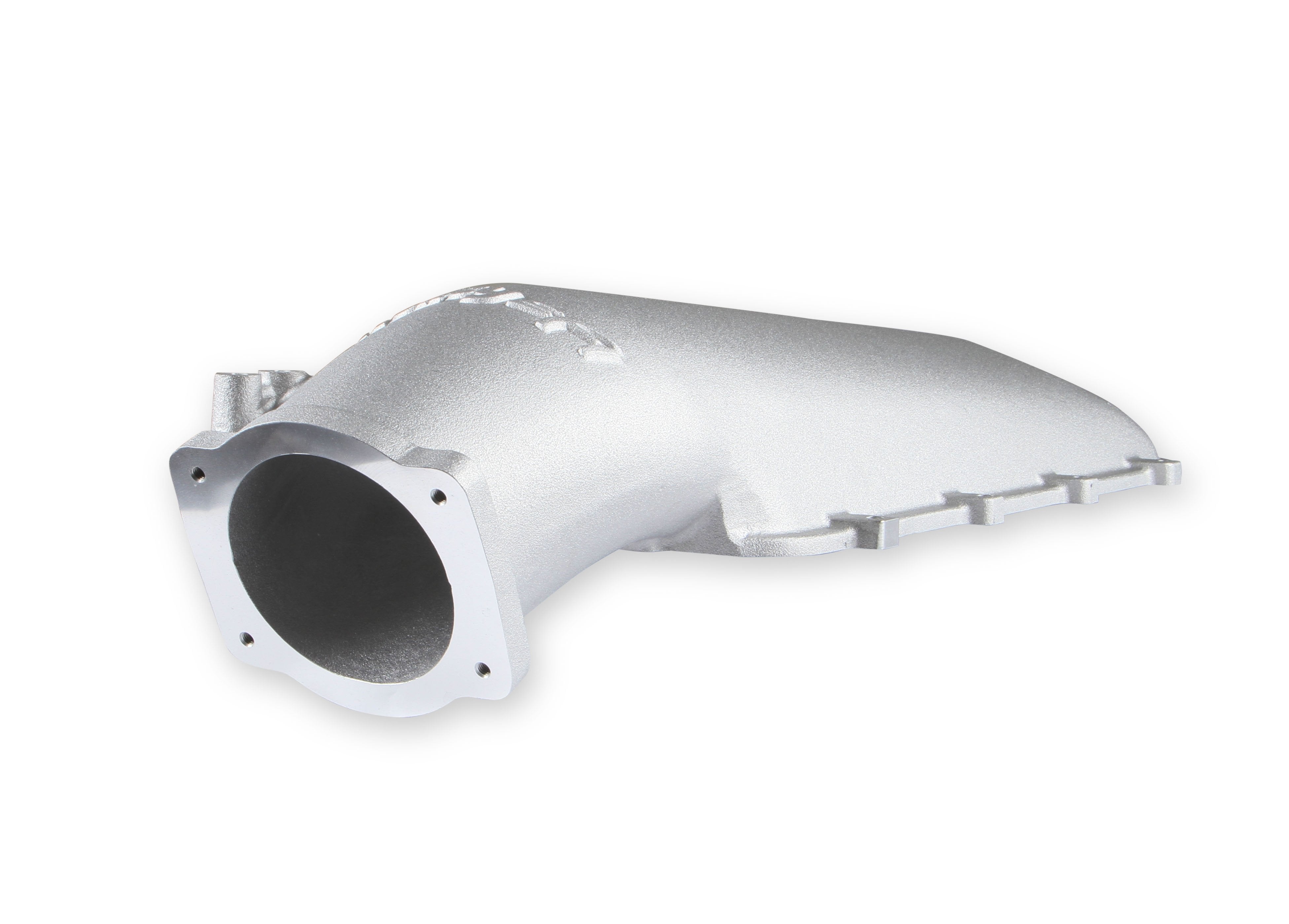

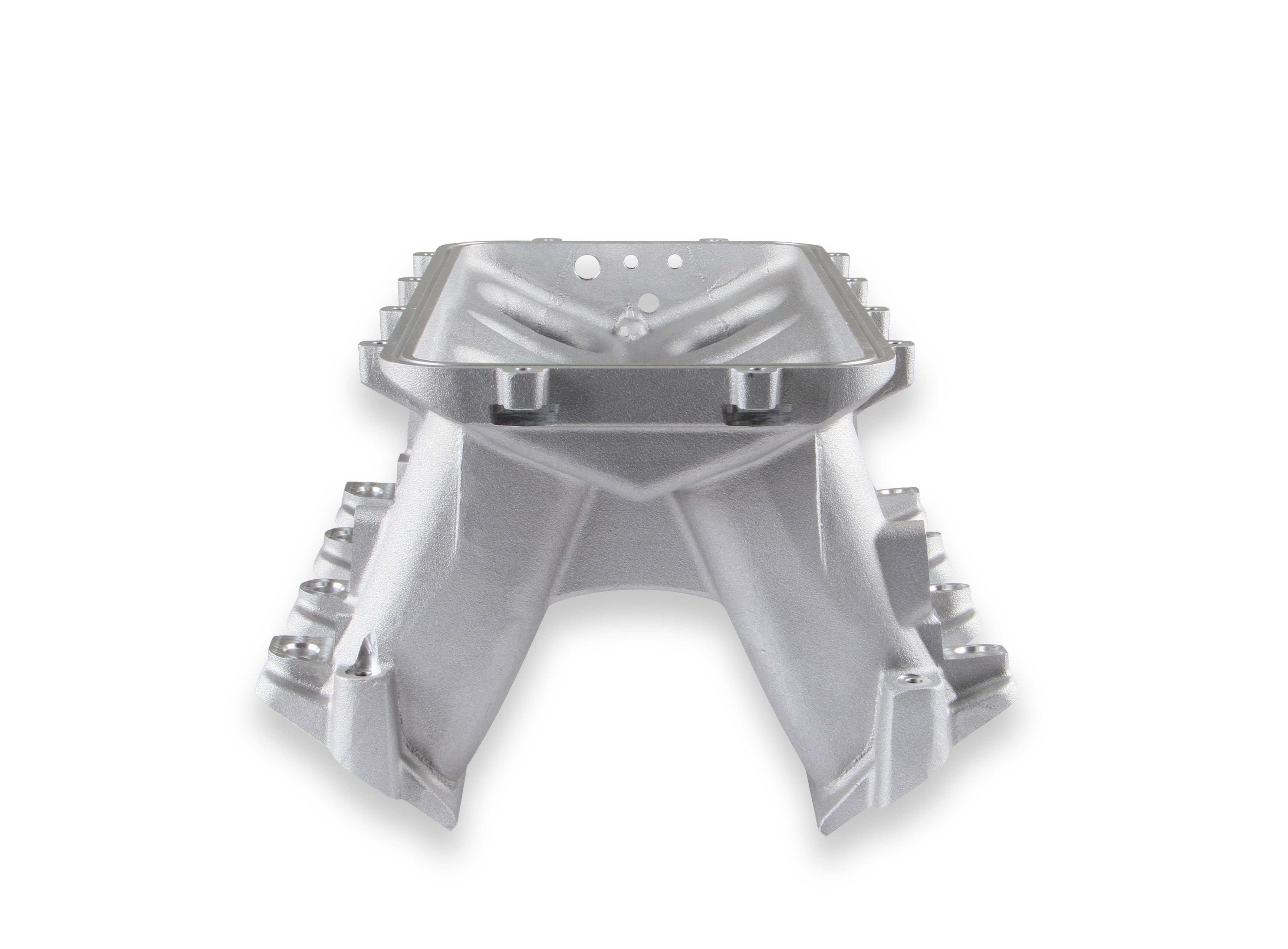

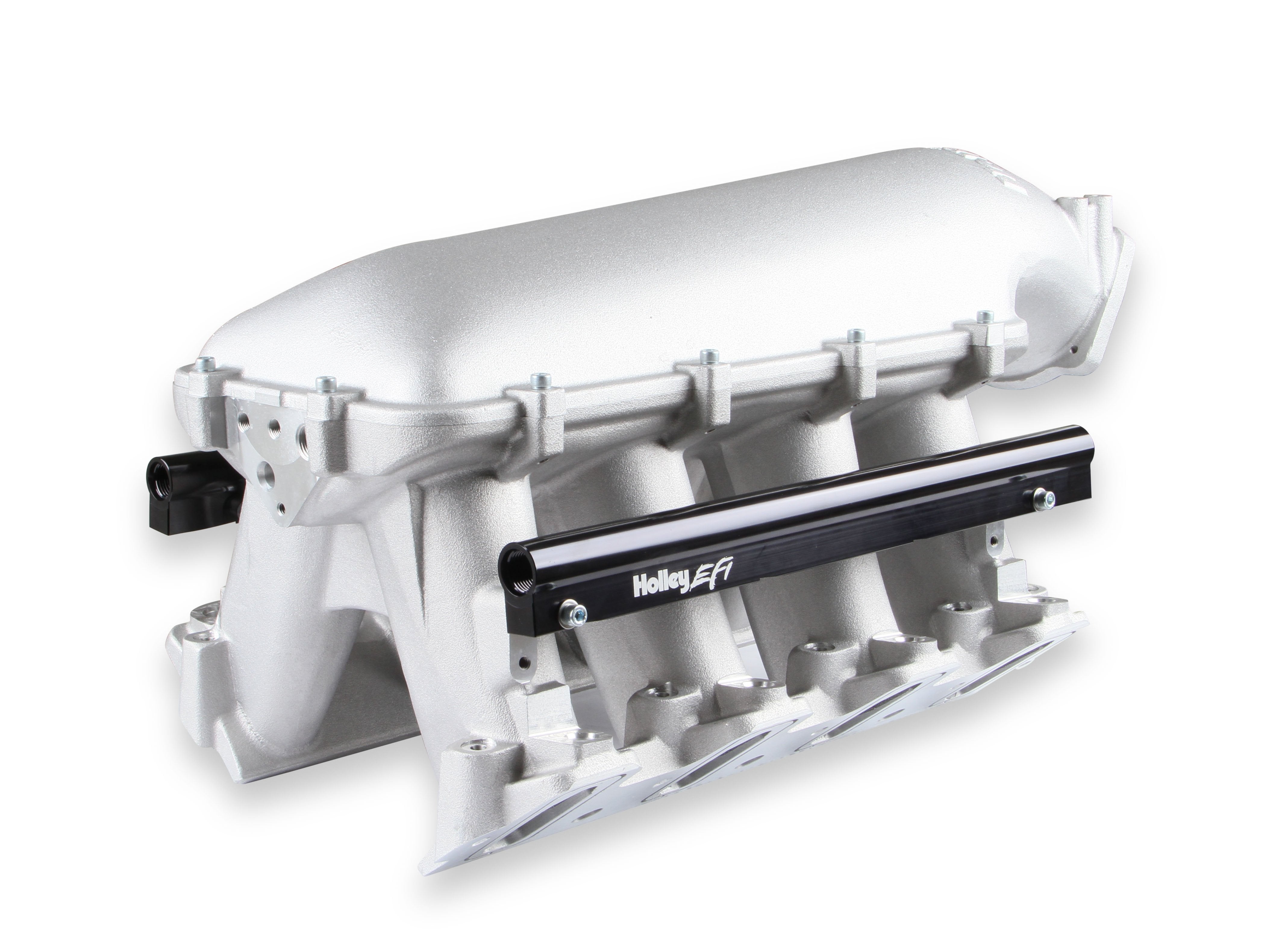

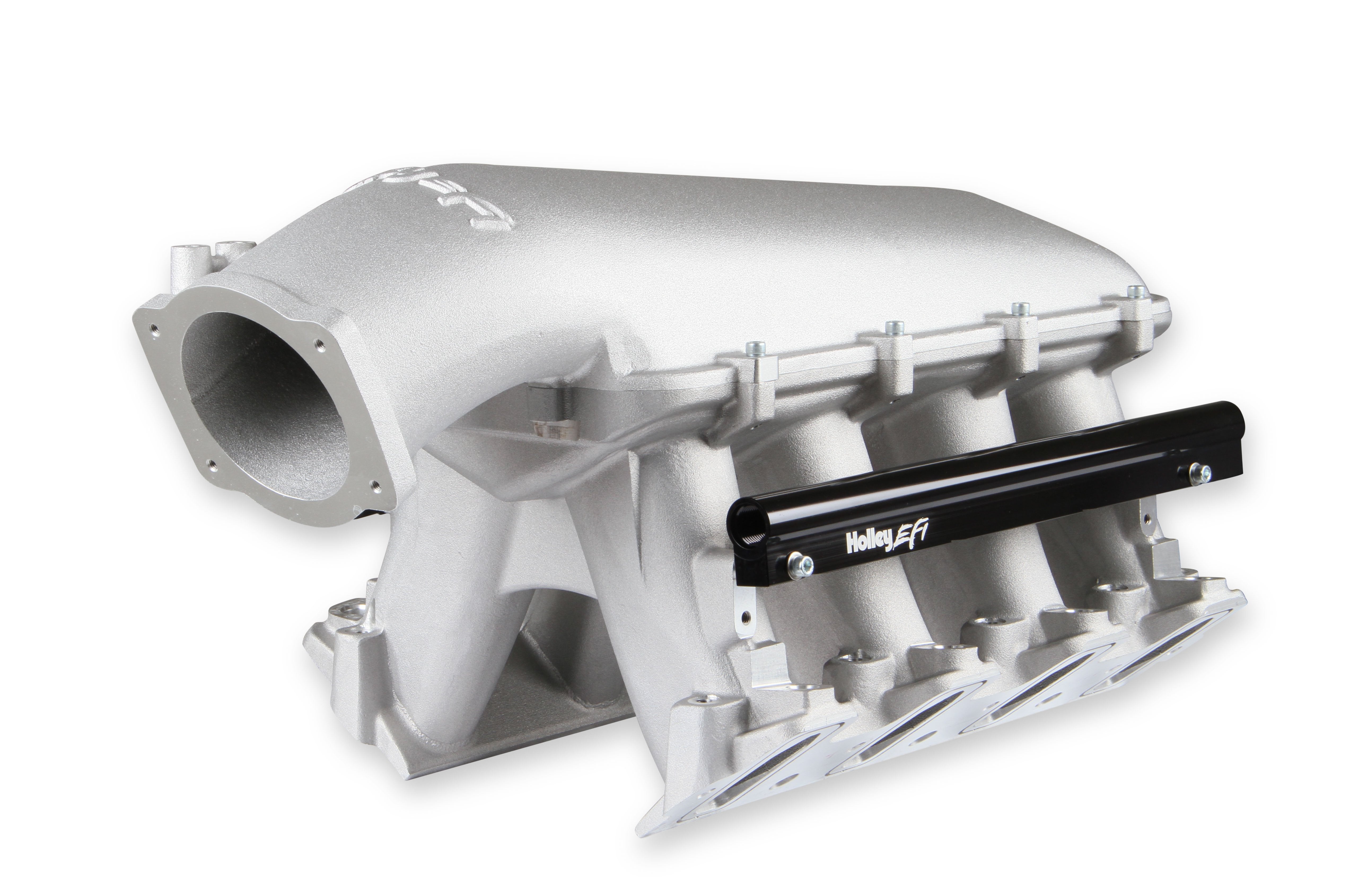

LS Hi-Ram EFI Manifold GM LS1/LS2/LS6 - 92MM Throttle Body
LS Hi-Ram EFI Manifold GM LS1/LS2/LS6 - 92MM Throttle Body
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Holley EFI 2x4 Dual Plane Intake Manifold, LS Gen 3 LS1/LS2/LS6 engines, w/Black Ceramic Coating
Overview
Holley EFI 2x4 Dual Plane Intake Manifold, LS Gen 3 LS1/LS2/LS6 engines
All GM LS Gen 3 engines equipped with LS1/LS2 style cathedral port cylinder heads. NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly. There is a kit available separately for the LS7 Hi-Ram EFI to allow the use of stock LS7 fuel injectors, P/N 300-230 (see below in the service parts section).
Features:

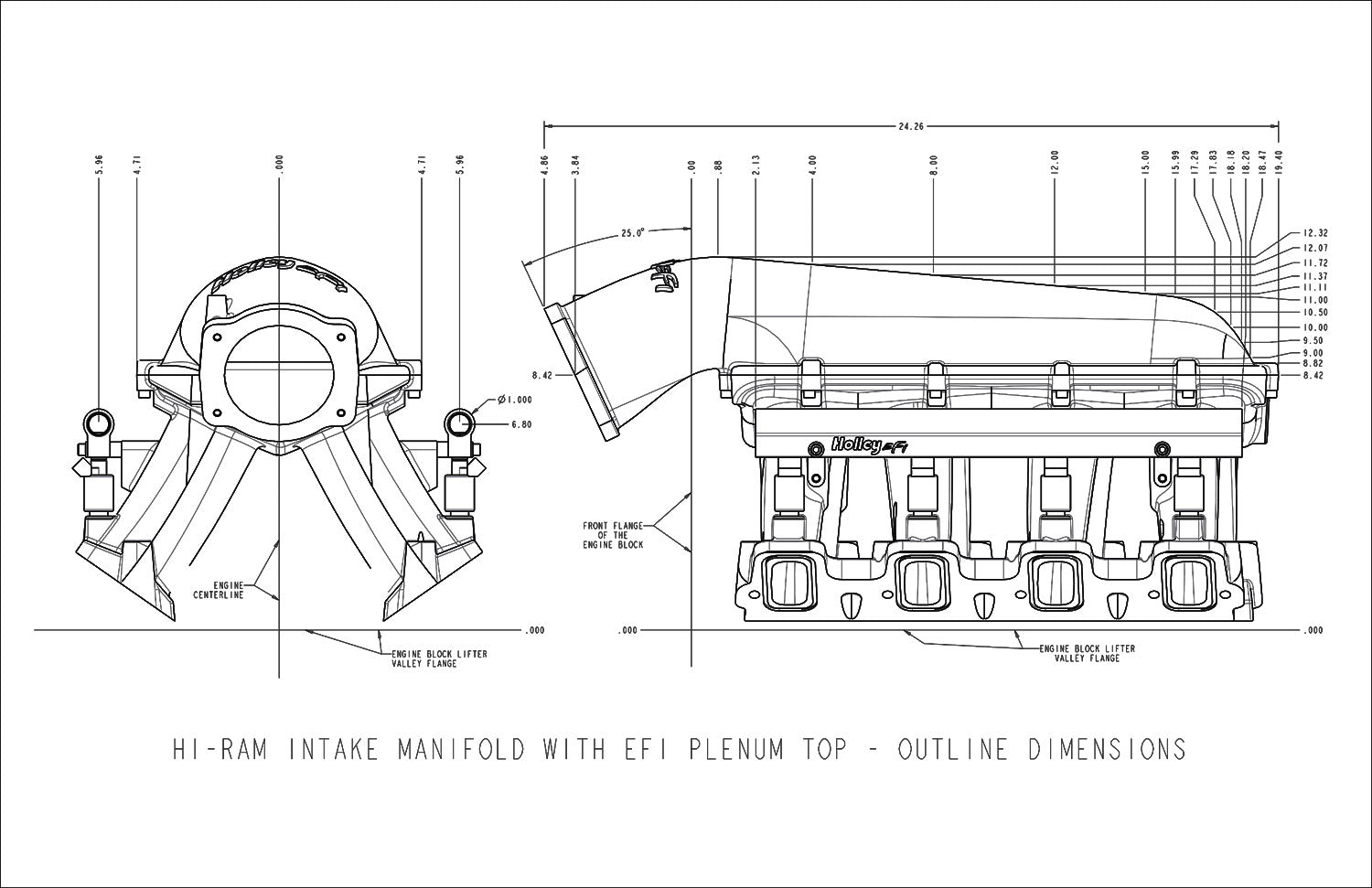

- Base Plenum Top Mounting Flange Height ???? 8.42??? to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top ???? 12.32??? to the lifter valley cover flange on engine block.
- Port Size ???? 2.49??? Height x 1.21??? Wide
- Mounting Flange Gasket Type ???? Standard LS3 Molded O-Ring
- Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord
- Throttle Body Flange Location, with 92mm EFI Plenum Top : Height ???? 8.42??? (from engine block lifter valley cover flange), Longitudinal Location ???? 3.84??? (forward from engine block front flange), Angle ???? 25 deg. (down from vertical)
- Runner Length ???? 6.58???, As-Cast Runner Cross-Sectional Area ???? Tapered 4.25 in?? to 2.53 in??
Details:
- Color: Silver
- Construction: Cast
- Engine: GM LS1/LS2/LS6
- Finish: Silver
- Flange Style: EFI
- Front Height: 12.32 inch
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Rear Height: 11.00 inch
- Recommended Use: Forced Induction
- RPM Power Band: 3500-8000 RPM
- Warranty: Limited 90 Day
Links
300-122
Instruction Sheet
Description
Description
Holley EFI 2x4 Dual Plane Intake Manifold, LS Gen 3 LS1/LS2/LS6 engines, w/Black Ceramic Coating
Overview
Holley EFI 2x4 Dual Plane Intake Manifold, LS Gen 3 LS1/LS2/LS6 engines
All GM LS Gen 3 engines equipped with LS1/LS2 style cathedral port cylinder heads. NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly. There is a kit available separately for the LS7 Hi-Ram EFI to allow the use of stock LS7 fuel injectors, P/N 300-230 (see below in the service parts section).
Features:
- Base Plenum Top Mounting Flange Height ???? 8.42??? to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top ???? 12.32??? to the lifter valley cover flange on engine block.
- Port Size ???? 2.49??? Height x 1.21??? Wide
- Mounting Flange Gasket Type ???? Standard LS3 Molded O-Ring
- Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord
- Throttle Body Flange Location, with 92mm EFI Plenum Top : Height ???? 8.42??? (from engine block lifter valley cover flange), Longitudinal Location ???? 3.84??? (forward from engine block front flange), Angle ???? 25 deg. (down from vertical)
- Runner Length ???? 6.58???, As-Cast Runner Cross-Sectional Area ???? Tapered 4.25 in?? to 2.53 in??
Details:
- Color: Silver
- Construction: Cast
- Engine: GM LS1/LS2/LS6
- Finish: Silver
- Flange Style: EFI
- Front Height: 12.32 inch
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Rear Height: 11.00 inch
- Recommended Use: Forced Induction
- RPM Power Band: 3500-8000 RPM
- Warranty: Limited 90 Day
Links
300-122
Instruction Sheet
