P0700 Code on a Cadillac: Transmission Control System MIL Request (Cadillac Guide)

P0700 on a Cadillac means the transmission control module asked the engine computer to turn on the check engine light. GM's wording is "Transmission Control Module (TCM) Requested MIL Illumination." It is a messenger: the real fault is stored in the TCM, and a basic code reader that only talks to the engine computer will show P0700 and stop. On a Cadillac that hidden code can be anything from a backed-out pin in the transmission connector to a worn valve body — and two of GM's current Cadillac coverages, for the 2019–2021 CT4, CT5 and CT6 and the 2022 Escalade, run 15 years or 150,000 miles.

What Does P0700 Mean on a Cadillac?

Every Cadillac in the GM bulletins below uses a separate transmission control module. The TCM runs its own diagnostics — speed sensors, solenoids, pressure switches, gear ratios — and stores its own codes. But the check engine light belongs to the engine control module (ECM). When the TCM finds an emissions-relevant fault, it sends a request over the serial data network, and the ECM turns on the light and stores P0700.

That has three consequences worth knowing:

• P0700 has no repair of its own. There is no "P0700 part." Fix the TCM code and P0700 goes with it.
• It depends on the network. Because the request travels over serial data, GM's Cadillac bulletins list P0700 alongside communication codes such as U0073, U0100 and U0101. A network fault can produce P0700 with a perfectly healthy transmission.
• The TCM can store P0700 too. GM's 2023–2025 bulletin for the CT4, CT5 and Escalade describes P0700 set in the TCM itself, together with P18AE.

For the general GM explanation, see our P0700 GM guide. This page covers what GM's own Cadillac documents say sits behind it.

Finding the Real Code

An inexpensive OBD-II reader asks the engine computer for emissions codes. It finds P0700 — correctly — and that is all. To go further you need a scan tool that can address the transmission module, or a shop with one.

What to ask for:

• A scan of the TCM specifically, with every current and history code
• The freeze frame and failure records, which record conditions when the code set
• Codes in every other module, because communication codes change the diagnosis completely

Record everything before anything is cleared. GM's Cadillac bulletins repeatedly say to correct other codes first — communication codes before transmission codes, and "all other performance related DTCs" before the P18AE check on newer models.

GM's Cadillac Connector Bulletins

Two GM documents tie P0700 on a Cadillac to the transmission's electrical connector rather than its internals.

PIC4740E (May 2015) covers 2006–2011 STS, 2007–2009 SRX, 2008–2014 CTS (VIN D) and 2013–2014 ATS and 2014 CTS sedan (VIN A) built before May 1, 2014, with the 6-speed automatic. The symptoms read like a list of unrelated failures: service engine soon light, reduced power, no crank, multiple warning lights, hard shifts and door locks cycling while driving. The TCM or ECM may not even talk to a scan tool. GM's cause is an unseated pin in the transmission connector, and its code list includes P0700 and U0073. The instruction: disconnect transmission connector X1 and gently tug each wire to confirm every pin is seated. GM warns that side load on the wires can make a loose pin feel locked.

08-07-30-021H (June 2015) covers the 2007–2014 Escalade models, 2009–2013 Escalade Hybrid and 2007–2009 XLR with the 6L80/6L90 six-speed or the hybrid's 2ML70. GM lists P0700 among high-speed GMLAN codes, with symptoms including the transmission not shifting or defaulting to 2nd gear, intermittent no crank, gauge fluctuation and door locks cycling. GM's causes include backed-out serial data terminals in the 16-way transmission connector, a terminal position assurance lock not fully seated, chafed harness at the transmission case clip, a faulty data link resistor, and corrosion or water intrusion in a module connector. On the XLR, GM says only the chafed-harness and 16-way connector procedure applies.

GM's table in that bulletin is the best advice on this page: do not replace any control module, wiring harness or component until the cause is isolated. For more on these transmissions, see our 6L80/6L90 guide, and for the communication side, our U0073 Cadillac guide.

Valve Body Coverages on Newer Cadillacs

On recent Cadillacs, GM's coverage documents describe a mechanical cause that would show up as P0700 on a basic reader.

Special Coverage N242480631 (revision 03, June 2025) covers the 2019–2020 CT6 and 2020–2021 CT4 and CT5. GM's condition: "the transmission control valve has worn, resulting in a gradual loss of pressure within the valve," causing harsh shifting, a service engine soon message, reduced engine performance or P0747. The repair is a new control valve body. It covers vehicles that return with that P0747 condition after TCM update N242480630, for 15 years or 150,000 miles, and includes a reimbursement provision. GM notes a phased launch: for the CT6, remedy parts were listed for 2019 models with the LSY or LGX/LGW engines and 2020 models with the LGX.

Special Coverage N252536751 (April 2026) applies the same condition and the same 15-year/150,000-mile term to the 2022 Escalade and Escalade ESV. GM requires safety recall N252536750 to be completed first.

23-NA-210 (November 2023, revised September 2024) covers the 2023–2025 CT4, CT5 and Escalade models with the MIL on right after starting and P18AE and/or P0700 set in the TCM. For vehicles with 5,000 miles or less, GM's check is simple: clear the code, power down, restart, idle 10 seconds, shift Park–Drive–Reverse–Park, power down and restart again. If no codes return, the vehicle goes back to the owner with no parts. If P18AE returns, the valve body is replaced. Over 5,000 miles, GM sends technicians to the full P18AE diagnostic instead.

None of these documents names P0700 as an entry code except 23-NA-210, so the code that matters for coverage is the one in the TCM. A dealer VIN check is free.

When the Fix Was Software

• 2015 Escalade and ESV, 8L90 (15-07-30-002A, February 2019) — firm 1-2 upshifts and 3-1 downshifts, RPM flare on tip-in, and the MIL with P0606, P16F3 or P2818. GM's correction is a TCM update followed by the service fast learn, which the scan tool will only run with transmission fluid between 75 °C and 85 °C (167–185 °F).
• 2023 CT4, CT5, Escalade and ESV (Service Update N232399010, March 2023) — intermittent loss of communication with the TCM. The fix is TCM reprogramming, at a dealer or over the air, with no parts. GM says this update expires at the end of the vehicle's new-vehicle limited warranty.

GM attaches the same warning to every programming job: the battery must be fully charged and voltage held between 12 and 16 volts. That is why programming is a dealer job with a support power supply, not a driveway job.

There is also one hardware coverage for a sensor circuit: N192291660 (July 2020) for the 2016 Escalade and ESV with the 6.2L L86, where the electrical connection to the transmission oil temperature sensor can cause rough shifts, hesitation, the MIL and codes that may include P0711, P0712 or P0713. GM's repair is a new transmission wiring harness. Its term is 10 years or 120,000 miles, which is ending or has ended on most 2016 models.

Older Cadillacs

NHTSA's index lists two early GM documents that name P0700 on a Cadillac: one for the 2004 SRX and XLR with no 4th or 5th gear and possible P0700, P0741 and P0762, and one (01108A) for the 2003 CTS with intermittent loss of power, stalling and throttle and TCM codes including P0700. We could read only the index summaries, so treat them as corroborated.

We did not confirm whether every older front-drive Cadillac reports transmission faults through P0700. If a scan of your older DeVille, Seville or Eldorado shows transmission codes directly, work from those.

Symptoms of P0700

• Check engine light on
• Harsh, delayed or flaring shifts
• Stuck in one gear, or defaulting to 2nd on 6L80/6L90 Escalades
• Reduced engine power
• Electrical oddities alongside it — no crank, door locks cycling, warning lights, gauges fluctuating — which point at the network or transmission connector
• Sometimes nothing but the light

Causes and How to Confirm Each

How Is P0700 Diagnosed?

1. Scan the TCM and every module. P0700 alone is not a diagnosis.
2. Save freeze frame and failure records before clearing anything.
3. Fix communication and engine codes first, as GM directs.
4. Check the VIN for open recalls, coverages and service updates — especially on a 2019–2022 Cadillac.
5. Look up the TCM code against GM bulletins for your model and year.
6. Inspect the transmission connector for backed-out pins, an unseated lock or chafed harness.
7. Check battery condition before any programming.
8. Follow GM's diagnostic for the stored code, then perform any service fast learn or adaptive relearn GM specifies.
9. Clear codes and road test, then rescan the TCM.

Parts and Cost

GM Documents That Name P0700 or Its Causes on a Cadillac

Have a dealer check your VIN against current coverages rather than relying on any article, including this one.

What Other P0700 Pages Get Wrong

• "P0700 means the transmission is failing." It means the TCM asked for the light. On many Cadillacs GM traced it to a connector pin.
• Replacing the TCM. GM's Escalade bulletin says not to replace any module until the cause is isolated.
• Ignoring communication codes. U0073 or U0100 with P0700 points at the network first.
• Paying for a valve body on a covered Cadillac. Check N242480631 or N252536751 by VIN first; both include reimbursement provisions.
• Clearing the code to "see if it comes back". Save the TCM records first. GM's own clear-and-recheck applies only to specific 2023–2025 vehicles under 5,000 miles.
• Skipping the relearn. GM includes a service fast learn after programming on the 8-speed.

Frequently Asked Questions

Is P0700 serious on a Cadillac?

It can be anything from a loose connector pin to a worn valve body. Have the TCM scanned before deciding. If the car is stuck in one gear, shifting harshly or losing power, limit driving until it is diagnosed.

Why does my scanner only show P0700?

A basic reader talks to the engine computer, which stores P0700 when the TCM asks for the light. The real code is in the TCM and needs a tool that can address that module.

Is my CT4, CT5 or CT6 covered for transmission problems?

GM Special Coverage N242480631 covers worn transmission control valves with P0747 on 2019–2020 CT6 and 2020–2021 CT4 and CT5 for 15 years or 150,000 miles, after the related TCM update. A dealer VIN check confirms it.

Can a connector cause P0700 and no-crank at the same time?

Yes. GM's PIC4740E describes an unseated pin in the transmission connector on several Cadillacs causing a no-crank, warning lights, hard shifts and codes including P0700 and U0073.

What is P18AE with P0700 on a 2023–2025 Cadillac?

GM's bulletin 23-NA-210 covers P18AE and/or P0700 set in the TCM on CT4, CT5 and Escalade models. Under 5,000 miles, a dealer clears and rechecks; if P18AE returns, GM replaces the valve body.

Should I change the transmission fluid for P0700?

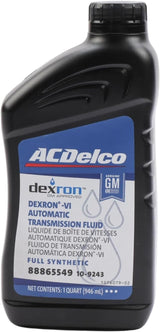

Not as a fix. None of the Cadillac bulletins here treats a fluid change as the repair for P0700. Fluid level and condition are still worth checking — see our transmission service guide.
